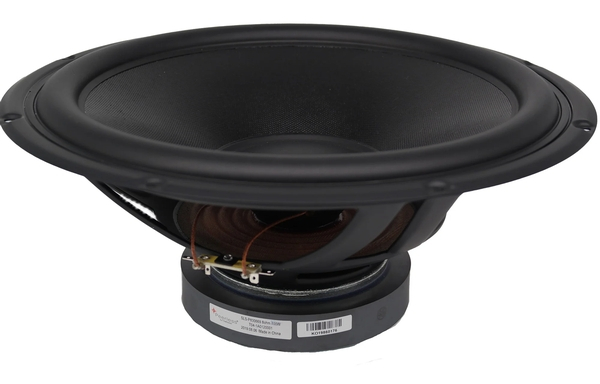

PEERLESS BY TYMPHANY SLS-P830669 12" ZVUČNIK DRIVER SUBWOOFER
Cijena dostave 4,00 €
8 ohms, 100W RMS, 200W max, paper Cone SLS.
Dodatne specifikacije za PEERLESS BY TYMPHANY SLS-P830669 12" ZVUČNIK DRIVER SUBWOOFER
Woofer Type: Subwoofer
Nominal Diameter: 12"
Power Handling (RMS): 110 Watts
Power Handling (max): 220 Watts
Impedance (Z): 8 ohms
Sensitivity (SPL at 1m / 2.83V): 89.8 dB
Frequency Response: 30 to 2,000Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 5.6 ohms
Voice Coil Inductance (Le): 1.12 mH
Resonant Frequency (Fs): 31 Hz
Mechanical Q (Qms): 7.1
Electromagnetic Q (Qes): 0.58
Total Q (Qts): 0.54
Diaphragm Mass Inc. Airload (Mms): 74.11g
Mechanical Compliance of Suspension (Cms): 0.35 mm/N
Surface Area of Cone (Sd): 522.8 cm²
BL Product (BL): 11.88 Tm
Compliance Equivalent Volume (Vas): 4.68 ft.³
Maximum Linear Excursion (Xmax): 8.3 mm
Cone / Diaphragm Material: Coated Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 12"
Overall Depth: 5.95"
Baffle Cutout Diameter: 10.91"
# Mounting Holes: 8
Sealed Volume: 2.41 ft.³
Sealed F3: 51Hz
Vented Volume: 8 ft.³
Vented F3: 27 Hz
Specifikacija za PEERLESS BY TYMPHANY SLS-P830669 12" ZVUČNIK DRIVER SUBWOOFER
