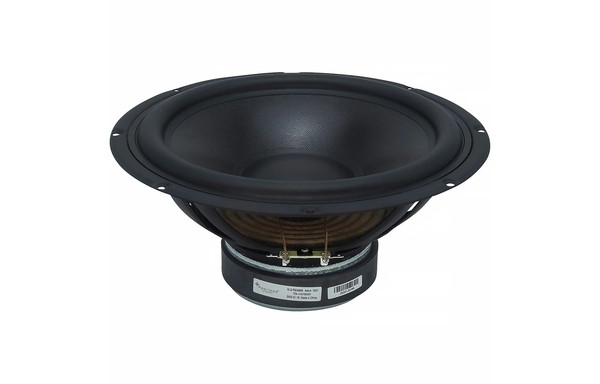

PEERLESS BY TYMPHANY SLS-P830668 10" ZVUČNIK DRIVER SUBWOOFER
Cijena dostave 4,00 €
8 ohms, 70W RMS, 140W max, paper Cone SLS.
Dodatne specifikacije za PEERLESS BY TYMPHANY SLS-P830668 10" ZVUČNIK DRIVER SUBWOOFER
Woofer Type: Subwoofer
Nominal Diameter: 10"
Power Handling (RMS): 70 Watts
Power Handling (max): 140 Watts
Impedance (Z): 8 ohms
Sensitivity (SPL at 1m / 2.83V): 87.9 dB
Frequency Response: 30 to 2,000Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 5.6 ohms
Voice Coil Inductance (Le): 1.37 mH
Resonant Frequency (Fs): 32 Hz
Mechanical Q (Qms): 7.1
Electromagnetic Q (Qes): 0.59
Total Q (Qts): 0.55
Diaphragm Mass Inc. Airload (Mms): 56.28g
Mechanical Compliance of Suspension (Cms): 0.43 mm/N
Surface Area of Cone (Sd): 346.4 cm²
BL Product (BL): 10.42 Tm
Compliance Equivalent Volume (Vas): 2.57 ft.³
Maximum Linear Excursion (Xmax): 8.3 mm
Cone / Diaphragm Material: Coated Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 10"
Overall Depth: 5.24"
Baffle Cutout Diameter: 8.9"
# Mounting Holes: 8
Sealed Volume: 1.25 ft.³
Sealed F3: 56 Hz
Vented Volume: 3.92 ft.³
Vented F3: 28 Hz
