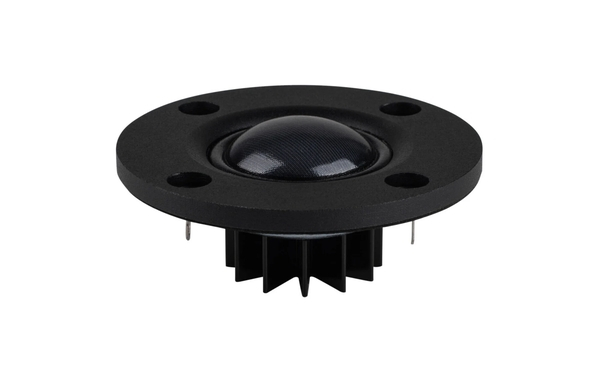

DAYTON AUDIO NHP25F-4 1" SOFT DOME NEODYMIUM TWEETER 4 OHM
Cijena dostave 4,00 €
Dayton Audio's versatile NHP25F-4 is a 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package.
Dodatne specifikacije za DAYTON AUDIO NHP25F-4 1" SOFT DOME NEODYMIUM TWEETER 4 OHM
Attached heatsink and ferrofluid cooling for increased power handling.
Over 95 dB efficient is perfect for use in higher output designs.
Compact cast aluminum faceplate minimizes center to center distance .
High temperature neodymium motor allows high output for extended periods.
High-strength neodymium motor offers low distortion and high efficiency.
Extremely smooth response makes for easy transition to midrange diver.
Cone / Dome Diameter.: 25 mm | 1"
Power Handling (RMS): 40 Watts
Impedance (Z): 4 Ω
Sensitivity (SPL at 1m / 2.83V): 98 dB
Frequency Response: 3.000 to 20,000 Hz
Resonant Frequency (Fs): 1689 Hz
DC Resistance (Re): 3.2 ohms
Voice Coil Inductance (Le): 0.03 mH
Total Q (Qts): 1.32
Overall Outside Diameter: 2.51"
Cutout Diameter: 1.57"
Depth: 1.07"
Specifikacija za DAYTON AUDIO NHP25F-4 1" SOFT DOME NEODYMIUM TWEETER 4 OHM
