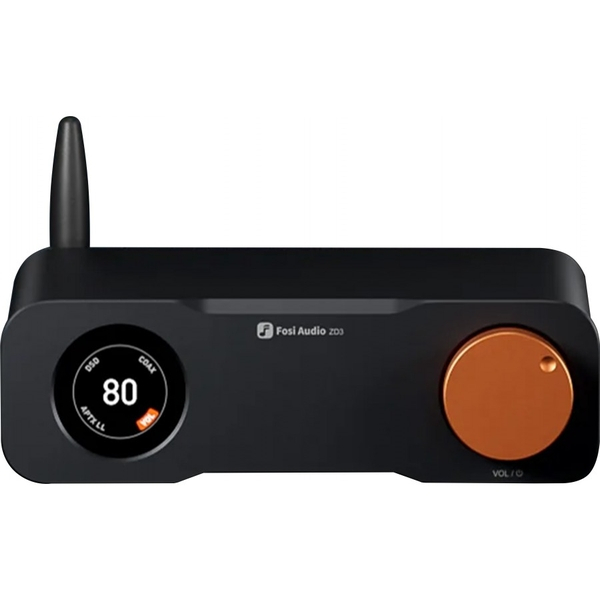

FOSI AUDIO ZD3 DAC
Fosi Audio's ZD3 is a balanced DAC with excellent connectivity thanks to its multiple inputs and Bluetooth 5.0 chip. The digital/analogue conversion is based on an ES9039Q2M chip, which supports PCM up to 32bit 768kHz and DSD up to DSD512. Three DIP8-mounted OPAs can also be replaced if you wish to have a different tone.
Dodatne specifikacije za FOSI AUDIO ZD3 DAC
Product type: DAC
DAC chip: ES9039Q2M
OPA: LME49720
Inputs: 1x USB-B, 1x HDMI ARC , 1x Coaxial , 1x Optical Toslink, Bluetooth
Outputs: 1x Stereo XLR, 1x Stereo RCA
Supported sampling rates: USB : PCM 32bit 768kHz / DSD512, Optical/Coaxial/HDMI : PCM 24bit 192kHz, Bluetooth : PCM 24bit 48kHz
Output level: XLR : 5Vrms, RCA : 2.5Vrms
Signal-to-noise ratio (SNR) 126dB
SINAD ≥ 120dB
Total harmonic distortion more noise (THD+N) < 0.00008%
Dynamic range ≥ 123dB
Noise level ≤ 2μV
Bluetooth version 5.0
Bluetooth operating range ≥ 13m
Supported codecs aptX HD, aptX, AAC, SBC
USB compatibility: Windows 7, 8, 8.1, 10, 11 (driver required), Mac OS X, Linux
Power supply DC 12V 1.5A
Specifikacija za FOSI AUDIO ZD3 DAC
