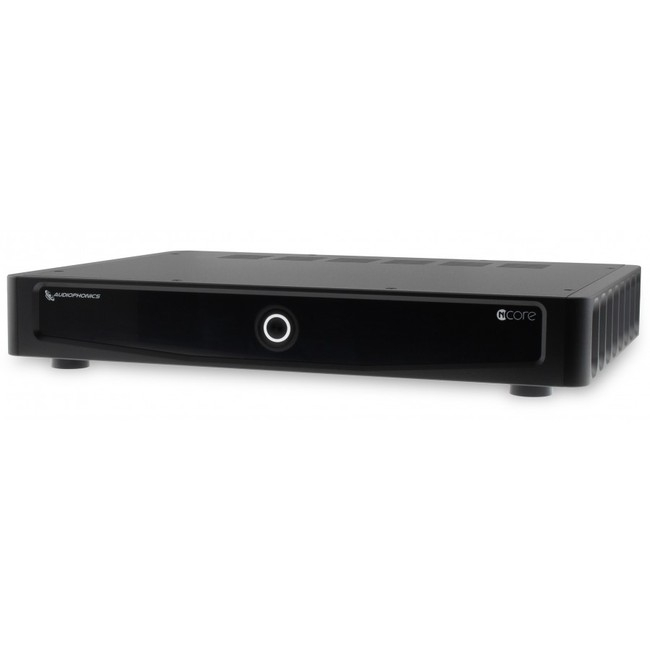

AUDIOPHONICS HPA-S600NCX POWER AMPLIFIER CLASS D NCORE NCx500 2x600W 4 OHM
The Audiophonics HPA-S600NCX stereo power amplifier, an updated and improved version of the HPA-S600NC, is now equipped with Hypex NCore NCx500 amplifier modules. These provide twice the performance in terms of distortion and output impedance than the previous model.
Dodatne specifikacije za AUDIOPHONICS HPA-S600NCX POWER AMPLIFIER CLASS D NCORE NCx500 2x600W 4 OHM
Product type Amplifier. Amplification type Class D. Amplification modules 2* Hypex NCore NCX500. Number of channel Stereo (2). Inputs 2* Single-ended RCA, 2* Balanced 3 poles XLR. Technology Ncore. Output power 2x500W @ 2Ω, 1kHz, THD = 0.01%, 2x600W @ 4Ω, 1kHz, THD = 0.01%, 2x300W @ 8Ω, 1kHz, THD = 0.01%. THD+N @ 20Hz-20kHz, 4Ω Typ: 0.0006%, Max: 0.001%. SNR 137dB. Output noise 7µV. Frequency response 0Hz - 70kHz @ +0/-3dB. Trigger Input / Output, 5-12VDC. Gain (switchable) Bypass : 11.5dB, 19dB, 25dB, 31dB, 33dB. Efficiency (max power) 92%. Dimensions Excluding terminal blocks: 413*330*60mm, With terminal blocks: 413*360*60mm. Weight 5.66kg.
Specifikacija za AUDIOPHONICS HPA-S600NCX POWER AMPLIFIER CLASS D NCORE NCx500 2x600W 4 OHM
OPĆENITO |
---|
