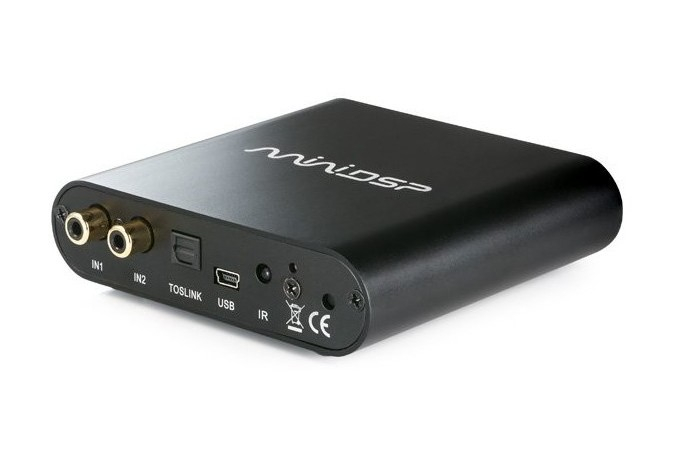

MINIDSP 2x4 HD INTERFACE / IIR CROSSOVER / DAC 24BIT 96KHZ
The MiniDSP 2X4HD interface is a processor for digital filtering. It uses a 24 bit / 192khz DAC (digital / analog converter) with SPDIF Toslink & asynchronous USB Audio Class 2.0 inputs. As most of miniDSP devices, 2x4 HD provides powerful, accessible tools to implement a digital filter (IIR Butterworth / Linkwitz Riley 6 to 48dB) and a parametric equalizer.
Dodatne specifikacije za MINIDSP 2x4 HD INTERFACE / IIR CROSSOVER / DAC 24BIT 96KHZ
Type: Digital filter, DAC. USB interface: XMOS X200. ADC / DAC: 24 bit. Control: Remote control (included), Windows PC interface (requires Adobe Flash, Adobe AIr & Net Framework). Digital inputs: USB Input: Windows-compatible ASIO 24bit 192khz asynchronous, digital SPDIF Toslink with asynchronous processor ASRC (20-216Khz). Analog inputs: analog stereo input RCA phono level of 2V input (or 4V by jumpers), analog input impedance 10KOhm, 0003 THD, 103dB dynamic. Analog outputs: 4 analog outputs on RCA phono connectors, 2Vrms Output Level, Output Impedance 560 Ohm, THD 0.001%. Power supply: 12V VDC connector 5.5 / 2.1mm (2.5W) - Power supply provided. Dimensions 27 x 119 x 107mm.
Specifikacija za MINIDSP 2x4 HD INTERFACE / IIR CROSSOVER / DAC 24BIT 96KHZ
