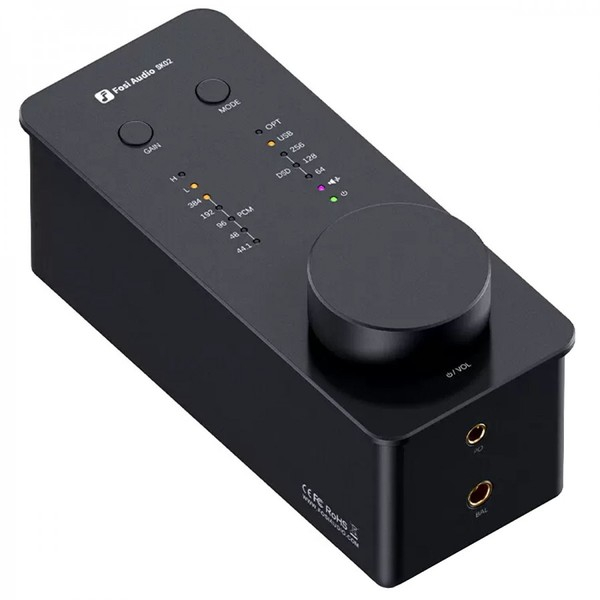

FOSI AUDIO SK02 POJAČIVAČ ZA SLUŠALICE / PRIJENOSNO PRETPOJAČALO / DAC ES9038Q2M
Cijena dostave 4,00 €
With its SK02, Fosi Audio unveils a small, versatile, high-performance device that takes up the form factor of its SK01. The SK02 fulfills the functions of headphone amplifier, portable preamplifier and portable DAC. The SK02 features an ES9038Q2M DAC chip and a low-noise, high-speed SGM8262 operational amplifier chip. This enables the SK02 to support high-resolution streams up to PCM 32bit 384kHz and DSD256, with output power up to 1100mW.
Dodatne specifikacije za FOSI AUDIO SK02 POJAČIVAČ ZA SLUŠALICE / PRIJENOSNO PRETPOJAČALO / DAC ES9038Q2M
Product type Headphone amplifier / Potable Preamplifier / Portable DAC. DAC chip ES9038Q2M. Amplification chip SGM8262. Inputs 1x USB-C input, 1x Optical Toslink input. Outputs 1x 3.5mm jack headphone output, 1x 4.4mm balanced jack headphone output, 1x AUX jack 3.5mm/mini-Toslink output. Supported sampling rates USB: PCM 32bit 384kHz, native DSD up to DSD256, Toslink optical: PCM 24bit 192kHz. Gain adjustment: yes. Headphone output power 3.5mm headphone output: 90mW @ 32Ω (Low gain) / 280mW @32Ω (High gain), Balanced 4.4mm headphone output: 350mW @ 32Ω (Low gain) / 1100mW @32Ω (High gain). Recommended headphone impedance 16Ω-300Ω. Frequency response 20Hz-20kHz (+/-0.02dB). SNR 3.5mm jack headphone output: 110dB (Low gain) / 116dB (High gain), Balanced 4.4mm jack headphone output: 102dB (Low gain) / 113dB (High gain). THD > 0.001%. Noise level 3.5mm jack headphone output: 6.2uV, Balanced 4.4mm headphone output: 13uV. Crosstalk 3.5mm jack headphone output: 110dB (Low gain) / 118dB (High gain), Balanced 4.4mm headphone output: 103dB (Low gain) / 104dB (High gain). Power supply 5V DC via USB-C. Dimensions 121 x 51x 43mm. Weight Approx. 300g.
