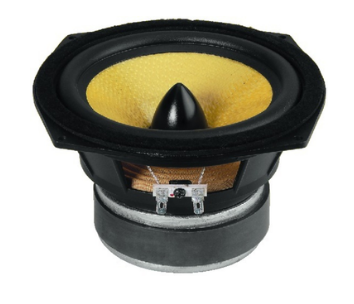

MONACOR SPH-165KEP 6-1/2" SREDNJETONSKI ZVUČNIK S MEMBRANOM OD KEVLARA 8 OHMA
AUD1776_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Visokotehnološki visokotonski zvučnik s membranom od kevlara koji je sposoban za duboku reprodukciju basa i glatku reprodukciju srednjeg tona i stoga je idealan kao srednji niskotonac u dvosmjernim zvučnicima.
Dodatne specifikacije za MONACOR SPH-165KEP 6-1/2" SREDNJETONSKI ZVUČNIK S MEMBRANOM OD KEVLARA 8 OHMA
Specifications
Article numberSPH-165KEP
Woofer TypeMidwoofer
Nominal Diameter6.5''
Power Handling (RMS)60 Watts
Power Handling (max)100 Watts
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)89 dB
Frequency Response30-7,000hz
Voice Coil Diameter35.5 mm
Magnet Weight500 g + 17 g
DC Resistance (Re)6 Ohms
Voice Coil Inductance (Le)0.7 mH
Resonant Frequency (Fs)30 Hz
Mechanical Q (Qms)4.85
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Diaphragm Mass Inc. Airload (Mms)17 g
Mechanical Compliance of Suspension (Cms)1.71 mm/N
Surface Area of Cone (Sd)127 cm2
BL Product (BL)7.60 Tm
Compliance Equivalent Volume (Vas)38 l
Maximum Linear Excursion (Xmax)4.75 mm
Cone / Diaphragm MaterialKevlar
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton
Basket / Frame MaterialAluminum
Magnet MaterialFerrite
Overall Outside Diameter165 x 165 mm
Overall Depth90 mm
Baffle Cutout Diameter142 mm
# Mounting Holes4
Mounting Hole Diameter4.5 mm
Specifikacija za MONACOR SPH-165KEP 6-1/2" SREDNJETONSKI ZVUČNIK S MEMBRANOM OD KEVLARA 8 OHMA
OPĆENITO |
|---|
