SMSL D-6S DAC ES9039Q2M XMOS XU316 BLUETOOTH 5.1 32BIT 768KHZ DSD512 MQA
AUD1755_2,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava
Jamstvo 24 mjeseci

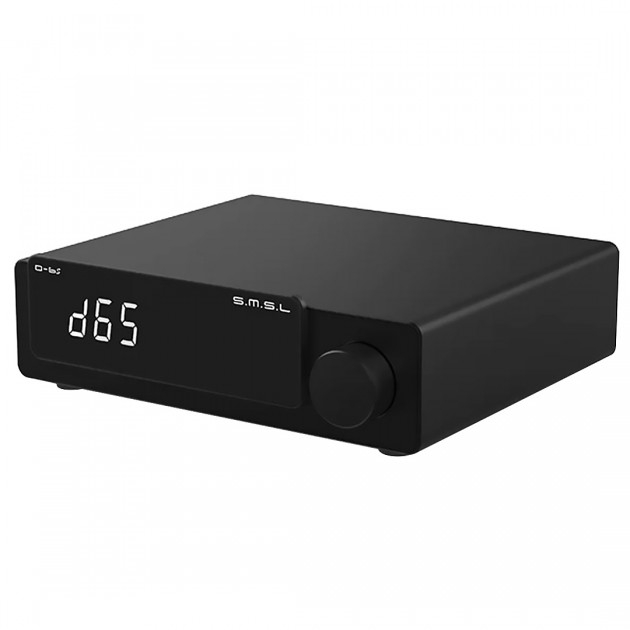

SMSL predstavlja svoj D-6S, kompaktni DAC visokih performansi. Ovaj mali D-6S DAC ima ESS ES9039Q2M DAC čip, četiri dvostruka OPA1612 AOP-a, Bluetooth 5.1 prijemni čip i XMOS XU316 USB sučelje.
Dodatne specifikacije za SMSL D-6S DAC ES9039Q2M XMOS XU316 BLUETOOTH 5.1 32BIT 768KHZ DSD512 MQA
| SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| DAC Chip | ES9039Q2M |
| USB interface | XMOS XU316 |
| Inputs | 1x USB-C 1x Optical Toslink 1x Coaxial Bluetooth |
| Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
| THD+N | 0.00006% (-123dB) |
| Output level | XLR: 5Vrms RCA: 2.5Vrms |
| Output impedance | XLR: 100Ω |
| Dynamic range | XLR: 129dB RCA: 126dB |
| SNR | XLR: 129dB RCA: 126dB |
| USB transmission type | Asynchronous |
| USB compatibility | Windows 7 / 8 / 9 / 10 / 11 (With driver) MAC OSX 10.6 and more Linux |
| Supported sample rates | USB: PCM 32bit 768kHz, DSD DoP256, DSD512, MQA and MQA-CD Optical Toslink and Coaxial: PCM 24bit 192kHz, DoP64, MQA and MQA-CD |
| Bluetooth | 5.1 |
| Supported bluetooth formats | SBC, ACC, aptX, aptX HD, LDAC |
| GENERAL | |
|---|---|
| Power consumption | < 10W (Standby : < 0.5W) |
| Dimensions | 150 x 42 x 128.5mm |
| Net weight | 0.59kg |
| Package | 1x DAC SMSL D-6S 1x SMSL RC-8C remote control 1x Bluetooth antenna 1x Power cable |
Specifikacija za SMSL D-6S DAC ES9039Q2M XMOS XU316 BLUETOOTH 5.1 32BIT 768KHZ DSD512 MQA
OPĆENITO |
|---|
