1. Proizvodi
  2. Speaker drive

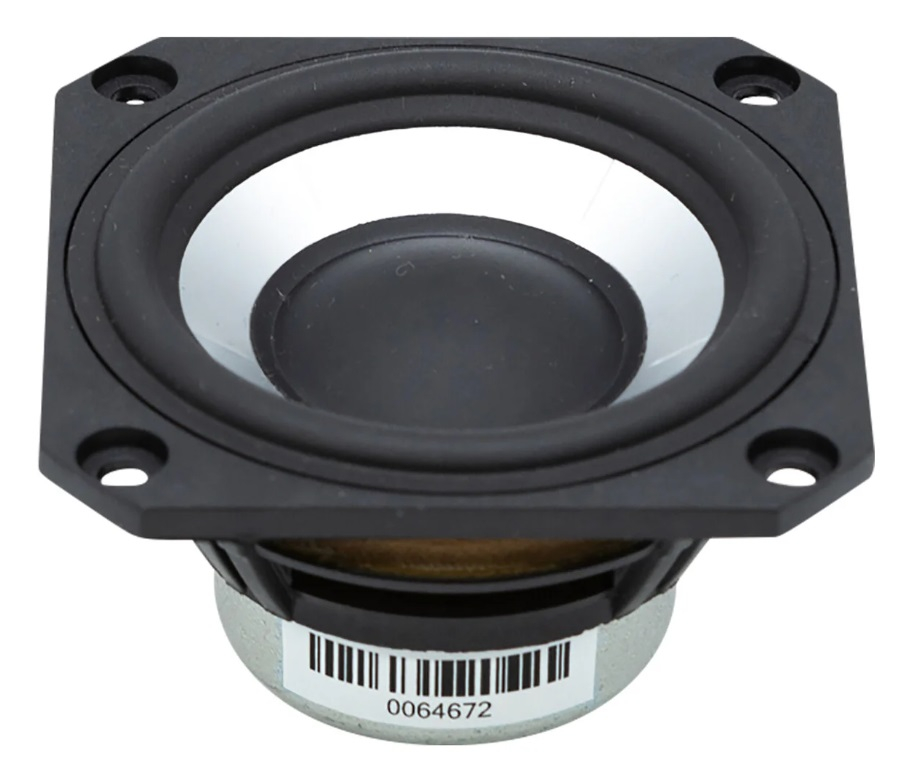

  3. SB ACOUSTICS SB65WBAC25-4 2,5" FULL RANGE DRIVER 4 OHM
Gotovina - jednokratno kartice

SB ACOUSTICS SB65WBAC25-4 2,5" FULL RANGE DRIVER 4 OHM

AUD1730_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/10679/image_1920?unique=7530d45
Potrebna provjera kod dobavljača
  • BRAND
  • Tag jamstvo

35,00 € 35,00 € 35.0 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 36,84 € 36,84 € Na rate

Jednokratno Diners, sve kartice na rate

35,00 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

SB Acoustics SB65WBAC25-4 2,5" Full Range Driver

Dodatne specifikacije za SB ACOUSTICS SB65WBAC25-4 2,5" FULL RANGE DRIVER 4 OHM

Product description



Highlights


  • Geometrically furrowed aluminum cone
  • Copper cap
  • Low damping surround and non-conductive voice coil former
  • Linear neodymium motor system
  • Vented voice coil former



Product details


SB Acoustics SB65WBAC25-4 2,5" Full Range Driver





The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver. It has a Geometrically furrowed aluminum cone for extended usable frequency range, Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Furthermore it uses a low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. All of these components are driven by a linear neodymium motor system for reduced distortion and a vented voice coil former for reduced compression.

Specifications

Article number : SB65WBAC25-4
Woofer Series : Wideband Series
Woofer Type : Full-Range
Nominal Diameter : 2.5"
Power Handling (RMS) : 20 Watts
Impedance (Z) : 4 ohms
Sensitivity :  (SPL at 1m / 2.83V)83.5 dB
Voice Coil Diameter : 25.4 mm
Magnet Weight : 0.02 kg
DC Resistance (Re) : 3.6 ohms
Voice Coil Inductance (Le) : 0.15 mH
Resonant Frequency (Fs) : 115 Hz
Mechanical Q (Qms) : 6.0
Electromagnetic Q (Qes) : 0.77
Total Q (Qts) : 0.68
Diaphragm Mass Inc. Airload (Mms) : 2.5g
Mechanical Compliance of Suspension (Cms) : 0.77 mm/N
Surface Area of Cone (Sd) : 20 cm2
BL Product (BL) : 2.9 Tm
Compliance Equivalent Volume (Vas) : 0.43 liters
Maximum Linear Excursion (Xmax) : 2.65 mm
Cone / Diaphragm Material : Aluminum
Magnet Material : Neodymium
Overall Depth : 38 mm
# Mounting Holes : 4
Mounting Hole Diameter : 3.3 mm

Specifikacija za SB ACOUSTICS SB65WBAC25-4 2,5" FULL RANGE DRIVER 4 OHM
