USB TO I2S INTERFACE BOARD XMOS XU208 BLUETOOTH 5.0 APTX-HD 32BIT 384KHZ DSD256
AUD1720_1,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

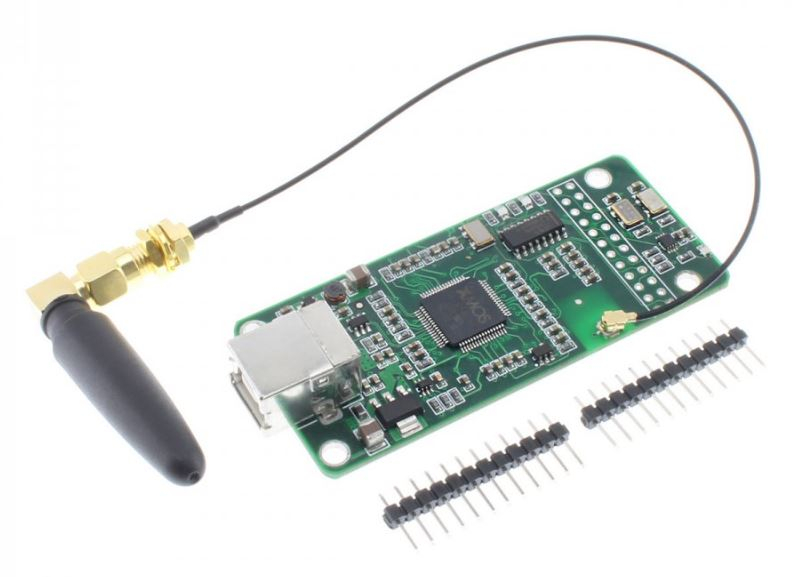

This digital interface module integrates a USB-B input and an I2S output. A powerful XMOS XU208 chip is used to decode the audio stream. It allows the support of high sampling rates, up to PCM 32bit 384kHz and DSD256. In addition, it also integrates a Bluetooth 5.0 receiver, thanks to a CSR8675 chip for remote broadcasting from a smartphone or tablet.
Dodatne specifikacije za USB TO I2S INTERFACE BOARD XMOS XU208 BLUETOOTH 5.0 APTX-HD 32BIT 384KHZ DSD256
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | USB to I2S interface |
| Inputs | 1x USB-B Bluetooth 5.0 |
| Output | 1x I2S |
| Supported sampling rates | PCM up to 32bit 384kHz Native DSD up to DSD256 DSD up to DSD256 |
| OS Compatibility | Windows 7 / 8 / 10 Mac OS 10.6 or later Linux Android 4.2 or later |
| Supported Bluetooth codecs | aptX aptX-HD |
| GENERAL | |
|---|---|
| Dimensions | 78.4 x 32 x 14.8mm |
| Mounting holes spacing | 63.7 x 25mm |
