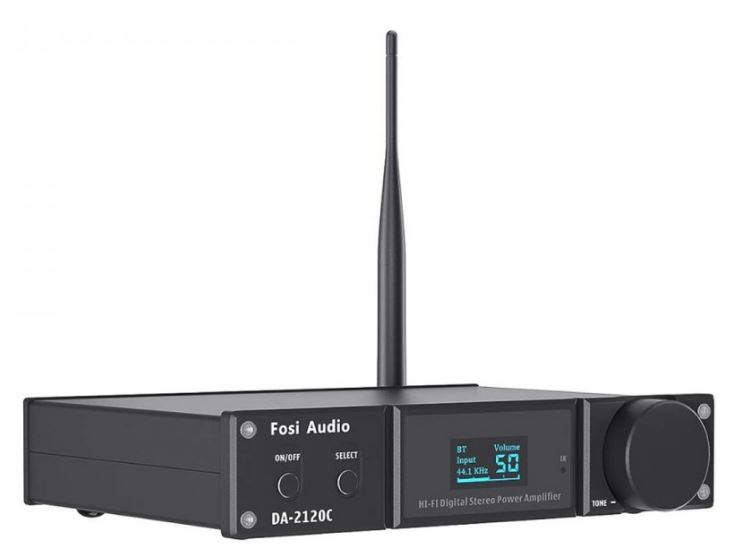

FOSI AUDIO DA-2120C AMPLIFIER FDA CLASS D TAS5352A 2X90W 4 OHM BLUETOOTH 5.0 BLACK
With the DA2120C, Fosi Audio offers a versatile and affordable Class D amplifier. Its amplification stage allows it to deliver a power of 2x90W under 4Ω, and this with a high efficiency.
Dodatne specifikacije za FOSI AUDIO DA-2120C AMPLIFIER FDA CLASS D TAS5352A 2X90W 4 OHM BLUETOOTH 5.0 BLACK
Product type Amplifier. Amplification type FDA Class D. Inputs Bluetooth 5.0, 1* USB-B, 1* Optical Toslink, 1* Coaxial, 1* Stereo RCA. Outputs Speaker terminals, 1* subwoofer output (RCA for active sub). Bluetooth receiver QCC3031. USB Interface CM6642. Amplification Chip TI TAS5352A. Audio processor TI TAS5508. Dac Chip American cirrus CS8422. Output power 2*90W @ 4Ω (1% THD / 32V), 2*120W @ 4Ω (10% THD / 32V). Supported sampling rates PCM 24bit 192kHz. Systeme compatibility Windows XP / 7 / 8 /10, Mac, Linux. Supported Bluetooth Codecs AAC, SBC, aptX HD. Input sensitivity 0.775V. THD ≤ 0.01%. SNR ≥ 105dB. Frequency range 20Hz - 20kHz (±1 dB). Termination impedance 2Ω - 8Ω. Tone control Bass / Treble via remote control. Power supply 24 - 36V DC. Dimensions (L*P*H) 180*130*38mm. Chassis material Aluminium.
Specifikacija za FOSI AUDIO DA-2120C AMPLIFIER FDA CLASS D TAS5352A 2X90W 4 OHM BLUETOOTH 5.0 BLACK
