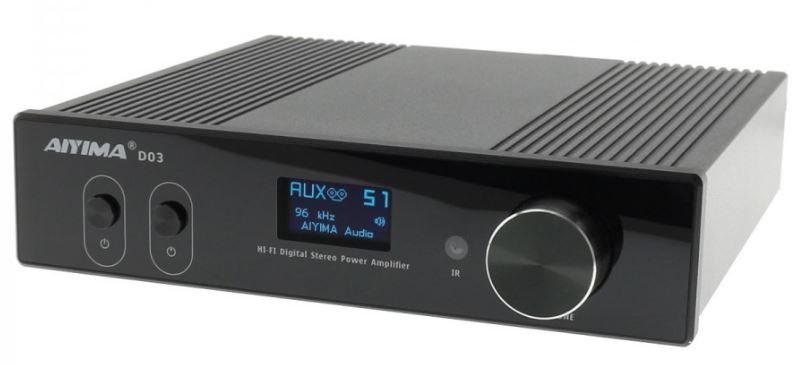

AIYIMA D03 FULL DIGITAL AMPLIFIER FDA 2.1 TAS5624 BLUETOOTH 5.0 APTX HD 2X120W 4 OHM
AUD1711_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 12 mjeseci NEUTRINO
Aiyima D03 je FDA (Full Digital Amplifier) pojačalo koje nudi dobru rezervu energije kao i preciznu i transparentnu reprodukciju zvuka. Zaista je sposoban razviti ne manje od 2x120W ispod 4Ω (THD+N 1%) uz visoku učinkovitost, zahvaljujući TI TAS5624A čipu pojačala.
Dodatne specifikacije za AIYIMA D03 FULL DIGITAL AMPLIFIER FDA 2.1 TAS5624 BLUETOOTH 5.0 APTX HD 2X120W 4 OHM
Technical characteristics
| SPECIFICATIONS | ||
|---|---|---|
| Product type | Amplifier | |
| Amplifier type | FDA | |
| Output power | 2x120W @ 4Ω, 32V, 1% THD+N 2x60W @ 8Ω, 32V, 1% THD+N 2x140W @ 4Ω, 32V, 10% THD+N 2x75W @ 8Ω, 32V, 10% THD+N |
|
| Inputs | Bluetooth 5.0 1x USB-B 1x Optical Toslink 1x Coaxial 1x Stereo RCA |
|
| Outputs | Speaker terminals 1x RCA output for active subwoofer |
|
| Amplification chip | TAS5624A | |
| ADC chip | PCM1808 | |
| SPDIF Interfaces | CS8422 TAS5548 |
|
| Bluetooth chip | QCC3034 | |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX-LL, aptX-HD | |
| Supported sampling rates | PCM up to 24bit 192kHz | |
| USB Compatibilité | Windows XP / 7 / 8 10 Mac OS Linux OTG smartphones |
|
| SNR | 93dB | |
| Bass / Treble settings | ±14dB | |
| Input sensitivity | 0.775V | |
| Frequency response | 20Hz-20kHz (±1.25dB) | |
| Subwoofer output level | 2.1V | |
| THD | 0.001% (1kHz, 1W) | |
| Speaker impedance | 4-8Ω | |
