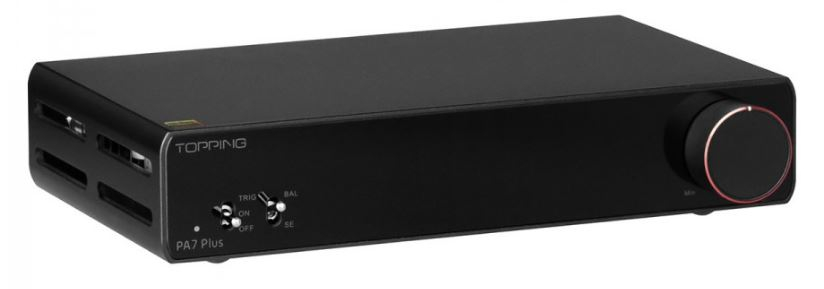

TOPPING PA7 PLUS AMPLIFIER CLASS D BALANCED 2X245W 4 OHM BLACK
AUD1709_1,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava
Jamstvo 24 mjeseci
Topping PA7 Plus je moćno pojačalo, bazirano na arhitekturi klase D i ima prednosti inteligentnog i posebno pažljivog dizajna. Stoga je sposoban razviti značajnu snagu uz održavanje vrlo niske razine izobličenja.
Dodatne specifikacije za TOPPING PA7 PLUS AMPLIFIER CLASS D BALANCED 2X245W 4 OHM BLACK
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Amplifier |
| Amplification type | Class D |
| Inputs | 1* Balanced stereo XLR/TRS combo 1* Single-ended stereo RCA |
| Output | Speaker outputs |
| MEASUREMENTS | ||
|---|---|---|
| Single-ended | Balanced | |
| THD+N @ 1kHz (A-weighted) | < 0.0005% @ 4Ω, 20W < 0.0004% @ 8Ω, 20W |
< 0.0004% @ 4Ω, 20W < 0.0003% @ 8Ω, 20W |
| THD+N @ 20kBw (No-weighted) | < 0.009% @ 4Ω, 20W < 0.004% @ 8Ω, 20W |
< 0.009% @ 4Ω, 20W < 0.004% @ 8Ω, 20W |
| SNR @ Max out, 1kHz (A-weighted) | 124dB | 127dB |
| Dynamic range @ 1kHz (A-weighted) | 124dB | 127dB |
| Frequency response | 20Hz-40kHz (±1.5dB) | 20Hz-40kHz (±0.3dB) |
| Output level | 90Vpp @ 4Ω 91Vpp @ 8Ω |
90Vpp @ 4Ω 91Vpp @ 8Ω |
| Noise (A-weighted) | < 17µVrms | < 17µVrms |
| Crosstalk @ 1kHz | -96dB | -116dB |
| Input sensitivity | 2Vrms | 4Vrms |
| Gain | 25.7dB | 19.8dB |
| Channel balance | 0.5dB | 0.5dB |
| Output power | 2*300W @ 4Ω, THD+N < 10% 2*165W @ 8Ω, THD+N < 10% 2*245W @ 4Ω, THD+N < 1% 2*135W @ 8Ω, THD+N < 1% |
|
| Load impedance | 4-8Ω | |
