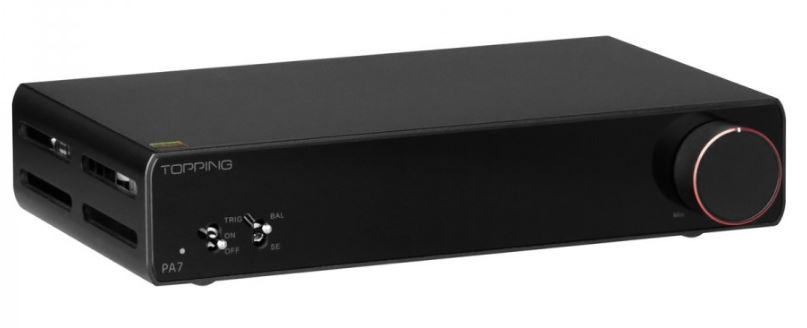

TOPPING PA7 AMPLIFIER CLASS D BALANCED 2X200W 4 OHM BLACK
AUD1707_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Topping PA7 je moćno pojačalo, bazirano na arhitekturi klase D i koristi se inteligentnim i posebno pažljivim dizajnom. Stoga je sposoban razviti značajnu snagu uz održavanje vrlo niske razine izobličenja. Korištene tehnologije osiguravaju jasnu, preciznu i duboku reprodukciju zvuka.
Dodatne specifikacije za TOPPING PA7 AMPLIFIER CLASS D BALANCED 2X200W 4 OHM BLACK
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Amplifier |
| Amplification type | Class D |
| Inputs | 1* Balanced stereo XLR/TRS combo 1* Single-ended stereo RCA |
| Output | Speaker outputs |
| MEASUREMENTS | ||
|---|---|---|
| Single-ended | Balanced | |
| THD+N @ 1kHz (A-weighted) | < 0.0005% @ 4Ω, 20W < 0.0004% @ 8Ω, 20W |
< 0.0004% @ 4Ω, 20W < 0.0003% @ 8Ω, 20W |
| THD+N @ 20kBw (No-weighted) | < 0.009% @ 4Ω, 20W < 0.004% @ 8Ω, 20W |
< 0.009% @ 4Ω, 20W < 0.004% @ 8Ω, 20W |
| SNR @ Max out, 1kHz (A-weighted) | 123dB | 126dB |
| Dynamic range @ 1kHz (A-weighted) | 123dB | 126dB |
| Frequency response | 20Hz-40kHz (±1.5dB) | 20Hz-40kHz (±0.3dB) |
| Output level | 83Vpp @ 4Ω 89Vpp @ 8Ω |
83Vpp @ 4Ω 89Vpp @ 8Ω |
| Noise (A-weighted) | < 17µVrms | < 17µVrms |
| Crosstalk @ 1kHz | -96dB | -116dB |
| Input sensitivity | 1.9Vrms | 3.8Vrms |
| Gain | 25.7dB | 19.8dB |
| Channel balance | 0.5dB | 0.5dB |
| Output power | 2*210W @ 4Ω, THD+N < 10% 2*150W @ 8Ω, THD+N < 10% 2*200W @ 4Ω, THD+N < 1% 2*125W @ 8Ω, THD+N < 1% |
|
| Load impedance | 4-8Ω | |
| GENERAL | |
|---|---|
| Dimensions (L*P*H) | 200*155*41mm |
| Color | Black |
| Package | 1* Topping PA7 1* Supply voltage |
