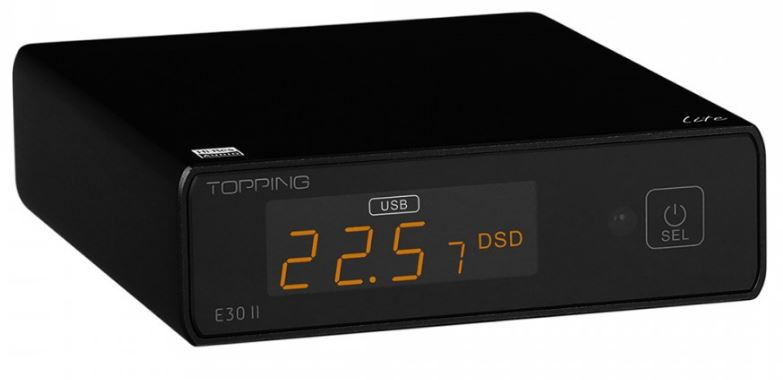

TOPPING E30 II LITE DAC AK4493S XMOS XU208 32BIT 768KHZ DSD512 BLACK
AUD1706_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 12 mjeseci NEUTRINO
Vrhunac se vratio s kompaktnim E30 II LITE DAC-om, smanjenom verzijom izvrsnog E30 II, koja sadrži brojna tehnička poboljšanja u odnosu na E30. S AK4493S DAC čipom, XMOS XU208 USB sučeljem i optimiziranim napajanjem, Toppingov pridošlica pružit će vam izvrstan DAC po iznimno pristupačnoj cijeni.
Dodatne specifikacije za TOPPING E30 II LITE DAC AK4493S XMOS XU208 32BIT 768KHZ DSD512 BLACK
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| DAC chip | 1* AKM AK4493S |
| Inputs | 1* USB-B 1* Optical Toslink 1* Coaxial |
| Output | 1* Stereo RCA |
| Supported sample rates | USB: PCM up to 32bit 768kHz, native DSD up to DSD512, DSD DoP up to DSD256 Coaxial / Optical: PCM up to 24bit 192kHz |
| THD+N @1kHz (A-weighted) | < 0.0002% |
| THD @90Bw (Not-weighted) | < 0.0004% |
| SNR (A-weighted) | 121dB @ 1kHz |
| Dynamic range (A-weighted) | 121dB @ 1kHz |
| Frequency response | 20Hz - 20kHz (+/-0.3dB) 20Hz - 40kHz (+/-0.8dB) |
| Output level | 2.1Vrms @ 0dBFS |
| Noise (A-weighted) | < 1.9µVrms |
| Crosstalk @ 1kHz | -137dB |
| Channel balance | < 0.3dB |
| Ouput impedance | 20Ω |
| GENERAL | |
|---|---|
| Dimensions | 100*125*32mm |
| Color | Black |
| Package | 1* Topping E30 II LITE 1* Remote control 1* USB-A male to USB-B male cable 1* USB-A male to DC jack power cable |
