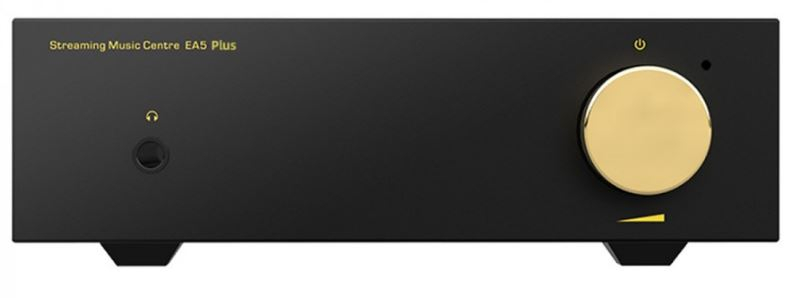

SHANLING EA5 PLUS STREAMER DAC AMPLIFIER AK4493EQ 100AS2 WIFI DLNA AIRPLAY BLUETOOTH MQA APTX HD LDAC 2X100W
AUD1703_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Shanling EA5 Plus je izuzetno svestran streamer, DAC, pojačalo i pojačalo za slušalice. Time omogućuje integraciju kompletnog povezanog audio sustava, koliko je praktičan koliko i učinkovit. Doista, EA5 Plus ima koristi od pažljivo izrađene tehničke arhitekture, koja pruža dinamičnu, bogatu i preciznu reprodukciju zvuka, a njegov operativni sustav Android nudi pristup širokom rasponu aplikacija.
Dodatne specifikacije za SHANLING EA5 PLUS STREAMER DAC AMPLIFIER AK4493EQ 100AS2 WIFI DLNA AIRPLAY BLUETOOTH MQA APTX HD LDAC 2X100W
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Streamer DAC Amplifier |
| Inputs | 1* Coaxial 1* Optical Toslink 1* USB-B 1* USB-A (USB Host) 1* Ethernet RJ45 1* Stereo RCA |
| Outputs | 1* Stereo RCA Speaker terminals |
| Wireless connectivity | WiFi 2.4/5G Two-way Bluetooth 4.2 |
| DAC chip | AKM AK4493 |
| Amplifier module | ICEpower 100AS2 |
| Headphone amplifier chips | 2* TPA6120A2 |
| Supported Bluetooth codecs | Transmission: SBC, aptX, aptX HD, LHDC, LDAC Reception: SBC, LDAC |
| Screen | 4.7" 720*1280px |
| OS | Android |
| Supported formats | DSF, DFF, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, ACC, OGG, ALAC, MP2, M4An AC3, M3U, M3U8, ISO |
| Supported sampling rates | PCM up to 32bit 768kHz Native DSD up to DSD512 |
| Adjustable gain | 4 levels |
| Micro SD card support | Up to 2To |
| Digital filters | 6 presets |
| Output power | 2*100W @ 4Ω 2*55W @ 8Ω |
| Frequency response | 20Hz-20kHz (-0.5dB @ Standard mode) 20Hz-20kHz (+3dB @ 100Hz Game mode) 20Hz-20kHz (-3dB @ Desktop mode) |
| THD+N | 0.002% (A-Weighted @ 0.5V) |
| SNR | 105dB @ 8Ω (A-Weighted) |
| Noise | 71dB @ 8Ω (A-Weighted) |
| Channels separation | 66dB @ 8Ω |
| RCA OUTPUT MEASUREMENTS | |
|---|---|
| Output level | Low: 0.82V Medium: 1.4V High: 3.0V Turbo: 4.8V |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.002% (A-Weighted @ 0.5V) |
| SNR | 118dB @ 32Ω (A-Weighted) |
| Noise | 107dB (low gain) |
| HEADPHONE OUTPUT MEASUREMENTS | |
|---|---|
| Output power | 570mW @ 32Ω |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.0029% @ 32Ω (A-Weighted @ 0.5V) |
| Dynamic range | 112dB @ 32Ω (A-Weighted, high gain) |
| Channels separation | 70dB @ 32Ω |
| SNR | 117dB @ 32Ω (A-Weighted, high gain) |
| Noise | 106dB (low gain) 104dB (others gain level) |
| Output impedance | < 0.8Ω |
