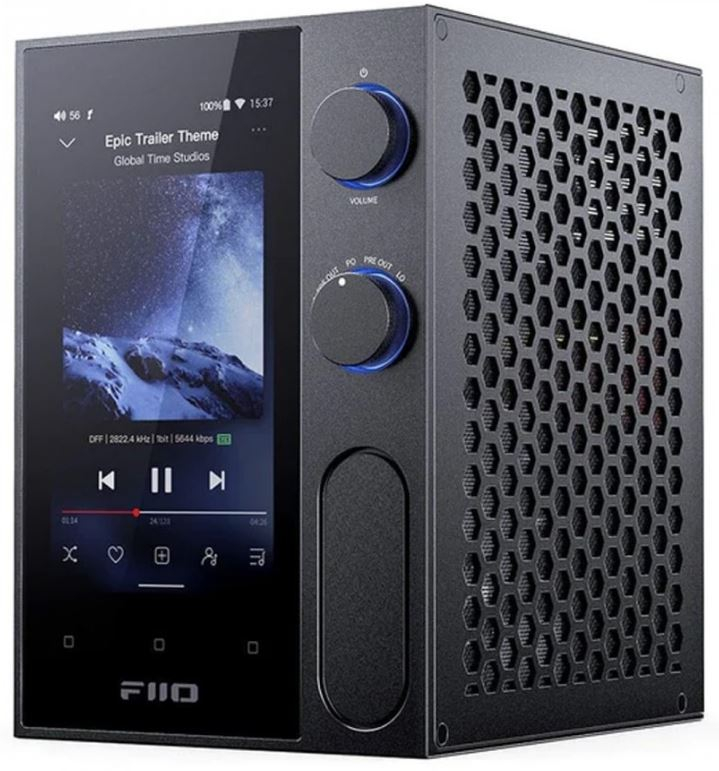

FIIO R7 AUDIO PLAYER DAC ES9068AS HEADPHONE AMPLIFIER 2X 32BIT 768KHZ DSD256 MQA
AUD1701_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
FiiO R7 je prvi digitalni audio player marke koji ima ES9068AS DAC čip visokih performansi, dva skupa čipova za pojačalo za slušalice velike snage THX-788+ i prekrasan zaslon za intuitivnu navigaciju.
Dodatne specifikacije za FIIO R7 AUDIO PLAYER DAC ES9068AS HEADPHONE AMPLIFIER 2X 32BIT 768KHZ DSD256 MQA
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Audio player |
| Inputs | Bluetooth 5.0 WiFi 1* USB-C 1* USB-A (USB Host) 1* Optical Toslink 1* Coaxial 1* Ethernet RJ45 1* Slot SD (up to 2TB) |
| Outputs | Bluetooth 5.0 WiFi 1* Optical Toslink 1* Coaxial 2* Single-ended stereo RCA 1* Balanced stereo XLR 1* Single-ended Jack 6.35mm headphone output 1* Balanced Jack 4.4mm headphone output 1* Balanced XLR 4 pins headphone output |
| WiFi | 2.4GHz/5GHZ |
| DAC chip | ESS ES9068AS |
| Headphone amplification chip | 2* THX AAA-788+ |
| SoC | Qualcomm Snapdragon 660 |
| RAM | 4Go |
| Internal storage | 64Go |
| OS | Android 10 |
| Screen | 4.97" 720*1280px |
| Supported Bluetooth codecs | Transmission: SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, LDAC, LHDC Reception: SBC, AAC, LDAC |
| Bluetooth LED indicator | Blue: SBC Cyan: AAC Purple: aptX / aptX LL Yellow: aptX HD White: LDAC Green: aptX Adaptive Orange: LHDC |
| Supported sampling rates | DAC USB / Local decoder: PCM up to 32bit 384kHz, Native DSD up to DSD256 USB Audio: PCM up to 32bit 768kHz, Native DSD up to DSD512 Coaxial input: PCM up to 24bit 192kHz Optical input: PCM up to 24bit 96kHz Coaxial output: PCM up to 24bit 384kHz, DSD DoP up to DSD128 Optical output: PCM up to 24bit 192kHz |
| MQA Support | 8x decoding |
| Sampling rates LED indicator | Blue: lossy Cyan: low resolution Yellow: high resolution Vert : DSD Magenta : MQA |
| Headphone output power | 3000mW |
| Recommanded headphone impedance | Single-ended: 16 ~ 150Ω Balanced: 16 ~ 300Ω |
| Channel balance | L20~R20 (0.5dB per level) |
| Gain settings | Ultra high Super high High Medium Low |
| EQ | Dynamic 10 bands (±12dB) 8 presets Custom EQ |
| SINGLE-ENDED HEADPHONE OUTPUT PERFORMANCES (INPUT: DAC USB/OPTICAL/COAXIAL, ULTRA HIGH GAIN) | |
|---|---|
| Output power | ≥ 2*1850mW @ 16Ω, THD+N < 1% ≥ 2*1250mW @ 32Ω, THD+N < 1% ≥ 2*160mW @ 300Ω, THD+N < 1% |
| SNR | ≥ 124dB (dBA) |
| Frequency response | 5Hz~50kHz @ attenuation < 1dB 20Hz~20kHz @ attenuation < 0.3dB |
| Output impedance | < 0.5Ω |
| Crosstalk | ≥ 77dB |
| Peak voltage | 18Vp-p |
| THD+N | < 0.0005% @ 1kHz, -8dB, 32Ω |
| Noise floor | < 4µV (dBA) |
| SINGLE-ENDED HEADPHONE OUTPUT PERFORMANCES (INPUT: DAC USB/OPTICAL/COAXIAL, SUPER HIGH GAIN) | |
|---|---|
| Output power | ≥ 2*1450mW @ 16Ω, THD+N < 1% ≥ 2*750mW @ 32Ω, THD+N < 1% ≥ 2*80mW @ 300Ω, THD+N < 1% |
| SNR | ≥ 124dB (dBA) |
| Frequency response | 20Hz~80kHz @ attenuation < 1dB 20Hz~20kHz @ attenuation < 0.3dB |
| Output impedance | < 0.4Ω |
| Crosstalk | ≥ 73dB |
| Peak voltage | 14Vp-p |
| THD+N | < 0.0005% @ 1kHz, -6dB, 32Ω |
| Noise floor | < 4µV (dBA) |
| BALANCED HEADPHONE OUTPUT PERFORMANCES (INPUT: DAC USB/OPTICAL/COAXIAL, ULTRA HIGH GAIN) | |
|---|---|
| Output power | ≥ 2*1000mW @ 16Ω, THD+N < 1% ≥ 2*3200mW @ 32Ω, THD+N < 1% ≥ 2*630mW @ 300Ω, THD+N < 1% |
| SNR | ≥ 122dB (dBA) |
| Frequency response | 20Hz~50kHz @ attenuation < 2dB 20Hz~20kHz @ attenuation < 0.3dB |
| Output impedance | < 0.5Ω |
| Crosstalk | ≥ 116dB |
| Peak voltage | 39Vp-p |
| THD+N | < 0.0005% @ 1kHz, -8dB, 32Ω |
| Noise floor | < 7.5µV (dBA) |
| BALANCED HEADPHONE OUTPUT PERFORMANCES (INPUT: DAC USB/OPTICAL/COAXIAL, SUPER HIGH GAIN) | |
|---|---|
| Output power | ≥ 2*800mW @ 16Ω, THD+N < 1% ≥ 2*3000mW @ 32Ω, THD+N < 1% ≥ 2*320mW @ 300Ω, THD+N < 1% |
| SNR | ≥ 122dB (dBA) |
| Frequency response | 20Hz~80kHz @ attenuation < 2dB 20Hz~20kHz @ attenuation < 0.1dB |
| Output impedance | < 0.5Ω |
| Crosstalk | ≥ 116dB |
| Peak voltage | 27.7Vp-p |
| THD+N | < 0.00048% @ 1kHz, -6dB, 32Ω |
| Noise floor | < 7.5µV (dBA) |
| SINGLE-ENDED LINE OUTPUT PERFORMANCES (USB DAC/OPTICAL/COAXIAL) | |
|---|---|
| THD+N | < 0.0005% @ 1kHz, -0dB, 10kΩ |
| SNR | ≥ 118.5dB (dBA) |
| Frequency response | 5Hz~80kHz @ attenuation < 2dB 20Hz~20kHz @ attenuation < 0.1dB |
| Crosstalk | ≥ 112dB |
| Noise floor | < 2.7µV (dBA) |
| Niveau de sortie | 2.2Vrms |
| BALANCED LINE OUTPUT PERFORMANCES (USB DAC/OPTICAL/COAXIAL) | |
|---|---|
| THD+N | < 0.0005% @ 1kHz, 0dB, 10kΩ |
| SNR | ≥ 125dB (dBA) |
| Frequency response | 5Hz~50kHz @ attenuation < 2dB 20Hz~20kHz @ attenuation < 0.1dB |
| Crosstalk | ≥ 121dB |
| Noise floor | < 2.5µV (dBA) |
| Niveau de sortie | 4.5Vrms |
Specifikacija za FIIO R7 AUDIO PLAYER DAC ES9068AS HEADPHONE AMPLIFIER 2X 32BIT 768KHZ DSD256 MQA
OPĆENITO |
|---|
