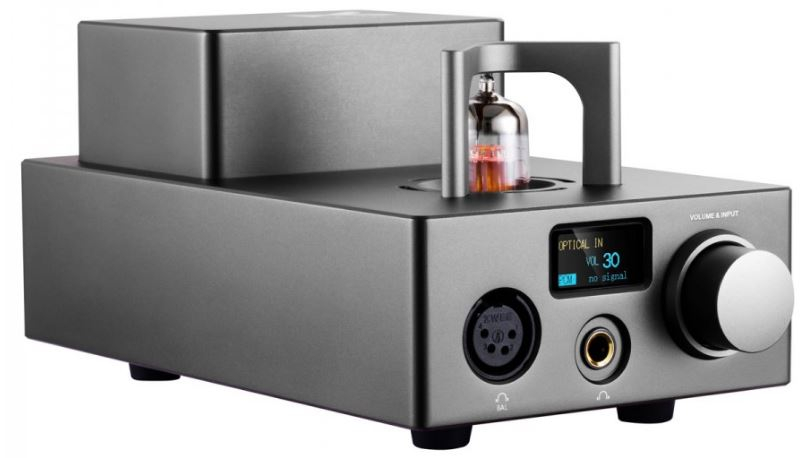

XDUOO TA-10R DAC AK4493 TUBE HEADPHONE AMPLIFIER CLASS A HYBRID ECC82 32BIT 384KHZ DSD256
AUD1693_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
xDuoo sa svojim TA-10R nudi kombinaciju cijevnog DAC-a klase A i pojačala za slušalice izvrsne kvalitete, nudeći i prekrasnu muzikalnost i veliku preciznost u restituciji zvuka.
Dodatne specifikacije za XDUOO TA-10R DAC AK4493 TUBE HEADPHONE AMPLIFIER CLASS A HYBRID ECC82 32BIT 384KHZ DSD256
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC Headphone amplifier |
| DAC Chip | AK4493 |
| Amplifier type | Class A |
| Tube | ECC82 |
| Inputs | 1x USB-B 1x Coaxial 1x Optical Toslink 1x Stereo RCA |
| Outputs | 1x SPDIF Coaxial 1x Stereo RCA |
| USB Interface | XMOS XSA-U8A-64 |
| Output power | 2000mW @ 32Ω |
| Supported sampling rates | USB : PCM up to 32bit 384kHz, DSD up to DSD256, DXD up to 32bit 384kHz Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Screen | OLED 0.96" |
| Frequency response | USB / Optical/ Coaxial : 20Hz ~ 20kHz (±0.5dB) Amp : 10Hz ~ 100kHz (±0.5dB) |
| SNR | 118dB |
| Crosstalk | ≥ 65dB |
| Compatible OS | Windows 7 / 8 / 10 Mac OS X iOS Android |
| THD+N | ≤ 0.1% (1kHz) |
| GENERAL | |
|---|---|
| Supply voltage | AC 100-240V (power cable included) |
| Dimensions | 230 x 120 x 105mm |
| Housing material | Aluminum |
| Weight | 1.5kg |
| Color | Gray |
| Package | 1x xDuoo TA-10R 1x USB CAble 1x Jack 3.5mm / Jack 6.35mm adapter 1x Power cable |
