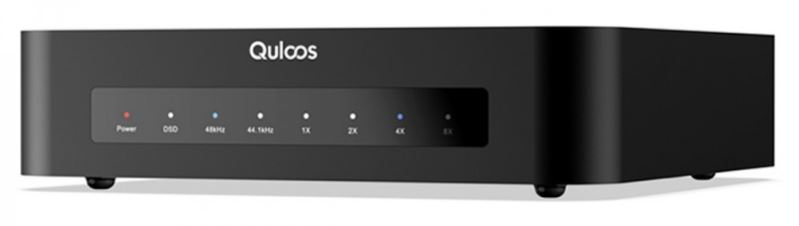

QULOOS QU02 DIGITAL INTERFACE USB TO SPDIF I2S ACCUSILICON AS338 BLACK
AUD1679_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The QU02 from Quloos is a high quality USB to SPDIF and I2S digital interface, incorporating only high-end components to provide the most transparent and faithful sound reproduction possible.
Dodatne specifikacije za QULOOS QU02 DIGITAL INTERFACE USB TO SPDIF I2S ACCUSILICON AS338 BLACK
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | USB Interface |
| Input | 1* USB-B |
| Outputs | 2* Coaxial 1* Optical Toslink 1* AES/EBU 1* I2S HDMI |
| Supported sampling rates | I2S: PCM up to 32bit 384kHz, Native DSD up to DSD512 AES: PCM up to 24bit 384kHz, DSD DoP up to DSD128 Optical: PCM up to 24bit 192kHz, DSD DoP up to DSD64 Coaxial : PCM up to 24bit 384kHz, DSD DoP up to DSD128 |
| Output impedance | I2S: 100Ω (LVDS) AES: 110Ω (3Vpp) Coaxial: 75Ω (0.55Vpp) |
| Clocks | AccuSilicon AS338 |
| Voltage regulators | LT3042 LT1963 LT3693 |
| GENERAL | |
|---|---|
| Suplpy voltage | 12VDC 2A via Jack DC 5.5/2.1mm |
| Consumption | < 5W |
| Dimensions (W*D*H) | 197*197*45mm |
| Weight | 1.29kg |
| Color | Black |
| Package | 1* Quloos QU02 1* Power supply 1* USB cable 1.5m |
