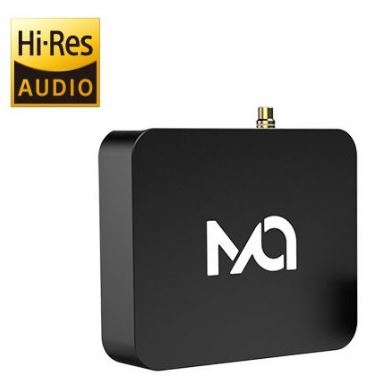

MATRIX X-SPDIF 2 USB INTERFACE XMOS U208 32BIT / 768KHZ COAXIAL-AES/EBU I2S HDMI LVDS
AUD1678_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The new USB to SPDIF and HDMI Matrix X-SPDIF 2 interface is a complete replay and not an evolution of the old X-SPDIF. Due to its characteristics it brings the digital signal to a higher level in high definition 32bit 768Khz.
Dodatne specifikacije za MATRIX X-SPDIF 2 USB INTERFACE XMOS U208 32BIT / 768KHZ COAXIAL-AES/EBU I2S HDMI LVDS
Specifications Matrix X-SPDIF 2:
Digital Inputs / Outputs:
- 1 AES / EBU output 110 Ohm balanced XLR: PCM 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, DSD64 (DoP)/ Li>
- 1 coaxial output SPDIF 75 Ohm: PCM 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, DSD64 (DoP)
- Optical Toslink Output: PCM 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, DSD64 (DoP)
- 1 I / O (I2S) output LVDS HDMI: PCM 16-32Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD compatibility of HDMI output LVDS: DSD64 / 128/256 / (DoP) DSD64 / 128/256/512 (Native)
- 1 USB 2.0 High Definition compatible PCM 32bit 768Khz and DSD64 to DSD512.
Specifikacija za MATRIX X-SPDIF 2 USB INTERFACE XMOS U208 32BIT / 768KHZ COAXIAL-AES/EBU I2S HDMI LVDS
