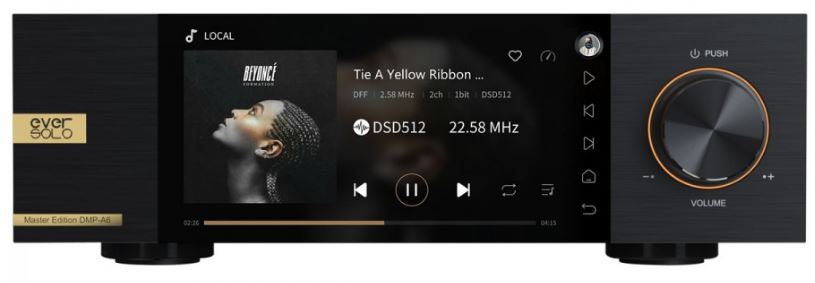

Dodatne specifikacije za EVERSOLO DMP-A6 MASTER EDITION STREAMER 2XES9038Q2M WIFI DLNA AIRPLAY 2
-
SPECIFICATIONS Product type Streamer Touch screen LCD 6" CPU ARM Cortex-A55 (Quad-core) Internal memory 4Go DDR + 32Go eMMC
Support SSD M.2 NVME 3.0 until 4 Tb (not included)DAC Chip 2x ES9038 Q2M Audio decoding PCM : 32bit 768kHz
DSD : DSD512
MQAUSB Interface XU316 (3rd generation) HDMI decoding chip 2x DOH chips Bluetooth Chips Qualcomm QCC5125 Bluetooth 5.0 AOP Chips OPA1612 CONNECTIVITY WiFi Dual-band 2.4G+5G Ethernet RJ45 (10/100/1000Mbps) Input USB port USB-C 3.0
Systeme compatibility : Windows (7, 10), Mac, Android, IOS
Audio compatibility :Stereo DSD512, PCM 768KHz 32Bit, MQAOutput audio HDMI Multi-channel : DSD64 Native
Raw Multi-channel : PCM 192KHzInput Bluetooth 5.0 QCC5125 Chip
Supported Codecs : SBC, AAC, aptX, aptX LL, aptX HD, LDACDigital audio inputs Bluetooth
1x USB-C
1x Coaxial
1x Optical ToslinkDigital audio outputs Bluetooth
1x Coaxial
1x Optical Toslink
1x HDMI
2x USB-AAnalog audio outputs 1* unbalanced stereo RCA
1* balanced stereo XLRIntegrated music services Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP Compatible streaming services Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc. Supported network protocol NFS / SMB v1-v2-V3 / UPnP MESUREMENTS Balanced XLR output Output level: 5.2V
Frequency Response: 20Hz~20KHz(±0.15dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @A-wt
Crosstalk: >-125dBUnbalanced RCA output Output level: 2.6V
Frequency response: 20Hz~20KHz (±0.2dB)
Dynamic range: > 124dB
SNR: >124dB
THD+N: <0.00011%(-119dB)@A-WT
Crosstalk: >-124dBGENERAL Power supply 110-240V AC 50/60Hz Rated Power 13W Dimensions (L*P*H) 180*270*90mm Color Black
Specifikacija za EVERSOLO DMP-A6 MASTER EDITION STREAMER 2XES9038Q2M WIFI DLNA AIRPLAY 2
