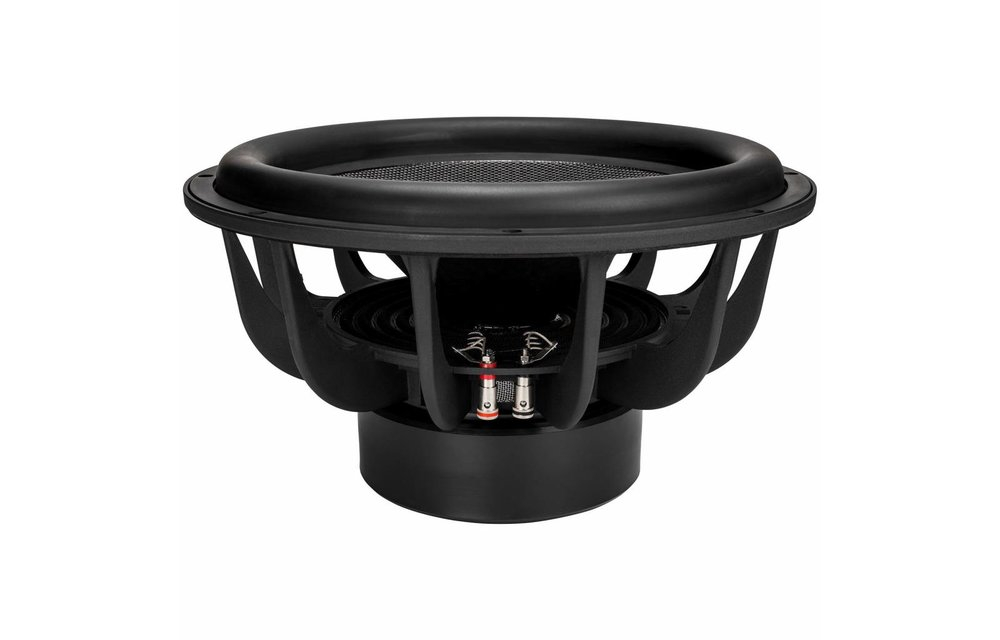

DAYTON UM12-22 12" SUBWOOFER AUDIO COMPONENTS
AUD1597_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.
Dodatne specifikacije za DAYTON UM12-22 12" SUBWOOFER AUDIO COMPONENTS
Specifications
Article numberUM12-22
Woofer SeriesUltimax Series
Woofer TypeSubwoofer
Power Handling (RMS)600 watts
Power Handling (max)1,200 watts
Impedance (Z)2+2 ohms
Sensitivity86.7 dB @ 2.83V/1m
Frequency Response20 - 1,000 Hz
Voice Coil Diameter63.5 mm
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)1.25 mH @ 1kHz
Resonant Frequency (Fs)26.2 Hz
Mechanical Q (Qms)3.62
Electromagnetic Q (Qes)0.71
Total Q (Qts)0.59
Diaphragm Mass Inc. Airload (Mms)270g
Mechanical Compliance of Suspension (Cms)0.14 mm/N
Surface Area of Cone (Sd)490.9 cm²
Volume of Displacement (Vd)932.7 cm³
BL Product (BL)14.2 Tm
Compliance Equivalent Volume (Vas)46.8 liters
Maximum Linear Excursion (Xmax)19 mm
Cone / Diaphragm MaterialNomex Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Dual Voice CoilYes
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter314.5 mm
Overall Depth191 mm
Baffle Cutout Diameter272.5 mm
# Mounting Holes8
Sealed Volume2.0 cubic ft. (net internal) with 1 lbs. of Acousta-Stuf polyfill
Sealed F336 Hz with a 0.707 Qtc alignment
Vented Volume4.0 cubic ft. (net internal, not including driver or port volume) tuned to 20 Hz with a 10" wide by 1.5" high slot port that is 25" long
Vented F319 Hz
Specifikacija za DAYTON UM12-22 12" SUBWOOFER AUDIO COMPONENTS
