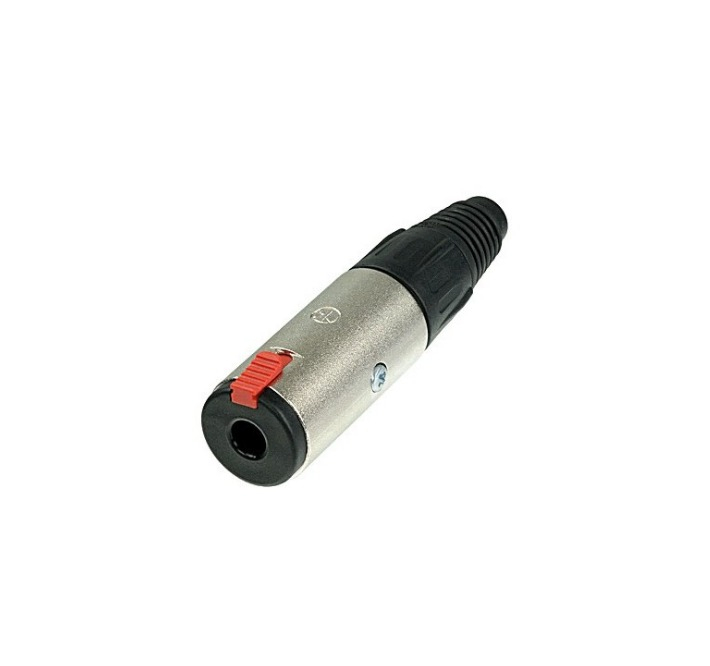

NEUTRIK NJ3FC6 JACK 6.35MM FEMALE GOLD PLATED Ø8MM
AUD1589_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 12 mjeseci NEUTRINO
NEUTRIK NJ3FC6 Jack 6.35mm Female Gold plated Ø8mm
Dodatne specifikacije za NEUTRIK NJ3FC6 JACK 6.35MM FEMALE GOLD PLATED Ø8MM
| Product | |
| Connector Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 6 mΩ (initial) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Rated current per contact | 10 A |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | < 20 N |
| Withdrawal force | < 20 N |
| Lifetime | > 10000 mating cycles |
| Locking force | > 80 N |
| Wire size | 1 mm² |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Material | |
| Boot | Polyuretan |
| Bushing | Polyamide (PA 6 15% GR) |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuBe2) |
| Contacts | Brass (CuZn37) (Ground) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 °C to +70 °C |
