SB ACOUSTICS SB29RDAC-C000-4 DOME TWEETER
AUD1559_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

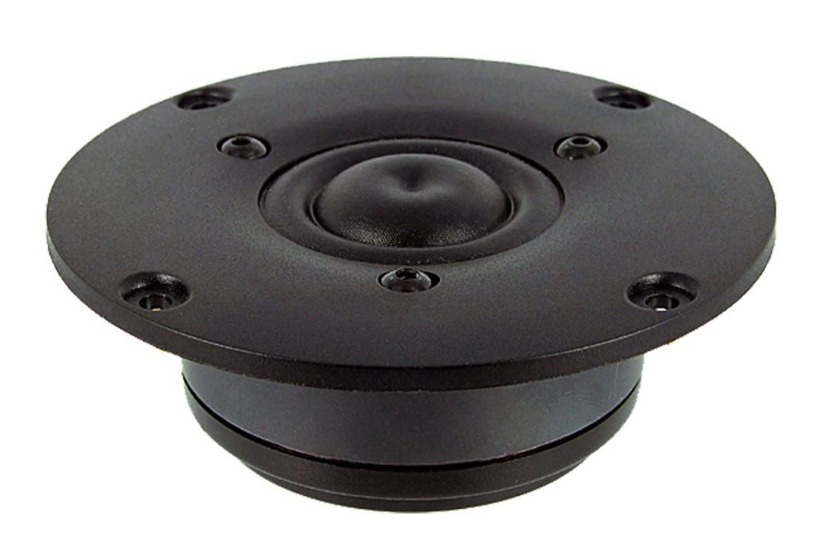

SB Acoustics SB29RDAC-C000-4 Fabric Ring-Radiator Tweeter
Dodatne specifikacije za SB ACOUSTICS SB29RDAC-C000-4 DOME TWEETER
Specifications
Article numberSB29RDAC-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)100 Watts
Impedance (Z)4 Ω
Sensitivity93dB (2.83V/1m)
Resonant Frequency (Fs)900 Hz
DC Resistance (Re)3 Ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)2.2
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.64
Overall Outside Diameter103.8 mm
Cutout Diameter70 mm
Recommended cut frequency2600 Hz, 12 dB/oct
Specifikacija za SB ACOUSTICS SB29RDAC-C000-4 DOME TWEETER
