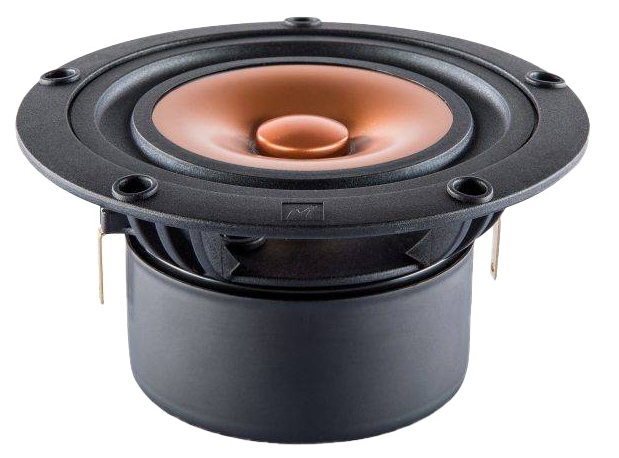

MARKAUDIO ALPAIR-7MS GOLD 4" FULL RANGE WOOFER
AUD1487_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
The advanced design Alpair 7MS (mono suspension) is a radical departure from previous models. The 7MS is completely new, utilising many new design components and manufacturing processes.
Dodatne specifikacije za MARKAUDIO ALPAIR-7MS GOLD 4" FULL RANGE WOOFER
Specifications
Article numberAlpair-7MS Gold
Woofer SeriesAlpair Series
Woofer TypeFull-range
Nominal Diameter4"
Power Handling (RMS)15 Watts
Impedance (Z)8 ohms
Sensitivity86.3 dB 2.83V/1m
Frequency Response70 to 30,000 Hz
DC Resistance (Re)7.2 ohms
Resonant Frequency (Fs)75 Hz
Mechanical Q (Qms)2.35
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.57
Diaphragm Mass Inc. Airload (Mms)3.3g
Mechanical Compliance of Suspension (Cms)1.384 mm/N
Surface Area of Cone (Sd)50.27 cm²
BL Product (BL)3.9 Tm
Compliance Equivalent Volume (Vas)0.175 ft.³
Maximum Linear Excursion (Xmax)4.5 mm
Overall Outside Diameter4.41"
Overall Depth2.44"
Baffle Cutout Diameter3.90"
# Mounting Holes5
