PACK TOPPING PA3S CLASS D AMPLIFIER + D10 BALANCED DAC + TCT1 JACK 6.35MM CABLES BLACK
AUD1473_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci

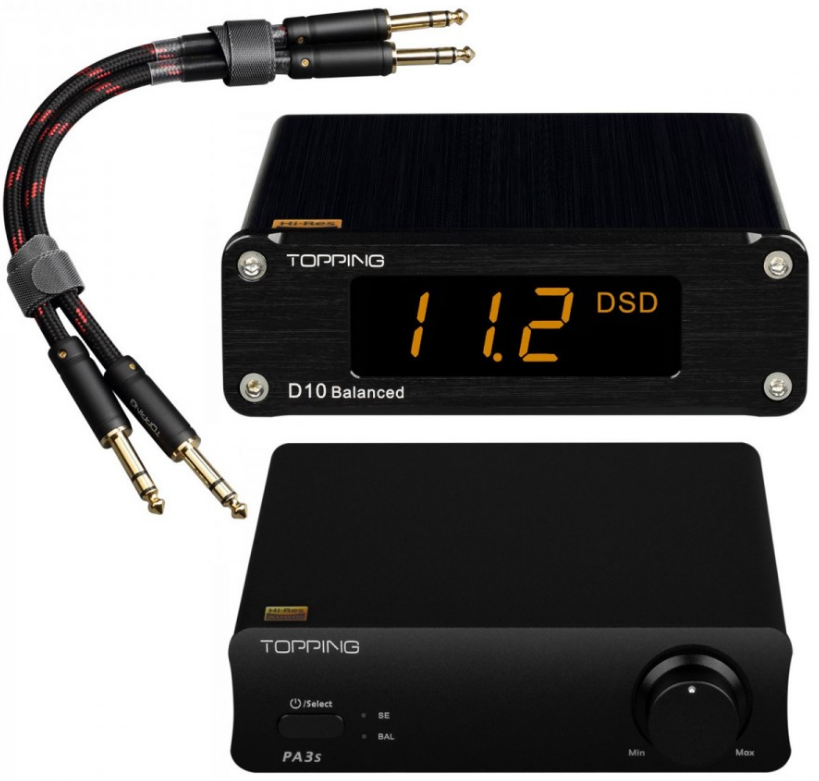

We propose you this complete Topping pack allowing to develop excellent sound performances. It consists of the PA3s Class D amplifier, the D10 Balanced DAC and the TCT1 cables.
Dodatne specifikacije za PACK TOPPING PA3S CLASS D AMPLIFIER + D10 BALANCED DAC + TCT1 JACK 6.35MM CABLES BLACK
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Ampifier + DAC + cables pack |
| Pack content | 1x Topping PA3s 1x Topping D10 1x Topping TCT1 |
| TOPPING PA3S SPECIFICATIONS AND MEASUREMENTS | ||
|---|---|---|
| Product type | Amplifier | |
| Amplifier type | Class D | |
| Amplification chip | 2x Infineon MA12070 | |
| Inputs | 1x Single-ended stereo RCA 1x Balanced stereo Jack 6.35mm |
|
| Output | Speaker terminals | |
| Single-ended input | Balanced input | |
| THD+N @ 1kHz (A-Weighting) | < 0.005% @ 4Ω 5W | < 0.0045% @ 4Ω 5W |
| < 0.004% @ 8Ω 5W | < 0.004% @ 8Ω 5W | |
| THD @ 20Hz-10kHz (20kBW) | < 0.008% @ 4Ω 5W | < 0.007% @ 4Ω 5W |
| < 0.007% @ 8Ω 5W | < 0.006% @ 8Ω 5W | |
| SNR @ Max Out 1kHz, A-Weighting | 107dB | 112dB |
| Dynamic range @ 1kHz, A-Weighting | 107dB | 112dB |
| Frequency response | 20Hz-40kHz (±0.1dB) | 20Hz-40kHz (±0.1dB) |
| Output level | 46Vpp @ 4Ω | 46Vpp @ 4Ω |
| 48Vpp @ 8Ω | 48Vpp @ 8Ω | |
| Noise Bruit (A-Weighting) | < 70µVrms | < 70µVrms |
| Crosstalk @ 1kHz | -96dB | -100dB |
| Input sensitivity | 0.92Vrms | 1.75Vrms |
| Gain | 25.2dB | 19.5dB |
| Channel balance | 0.5dB | 0.5dB |
| Output power | 2x 80W @ 4Ω THD+N < 10% | |
| 2x 45W @ 8Ω THD+N < 10% | ||
| 2x 65W @ 4Ω THD+N < 1% | ||
| 2x 37W @ 4Ω THD+N < 1% | ||
| Adapter impedance | 4-8Ω | |
| Supply voltage | 26VDC (power supply included) | |
| Dimensions | 120 x 168 x 40mm | |
| Color | Black | |
| TOPPING D10 BALANCED SPECIFICATIONS AND MEASUREMENTS | |
|---|---|
| Product type | DAC |
| DAC Chip | ESS ES9038Q2M |
| USB Interface | XMOS XU208 |
| Input | 1x USB-B |
| Outputs | 1x Balanced stereo output on Jack 6.35mm TRS (XLR adapters included) 1x Optical Toslink 1x Coaxial |
| Supported sampling rates | USB input : PCM up to 32bit 384kHz, Native DSD up to DSD256, DSD DoP up to DSD128 Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| THD+N @ 1kHz, A-Weighting | < 0.00012% |
| THD | < 0.00015% @ 20Hz-20kHz |
| SNR @ 1kHz, A-Weighting | 125dB |
| Dynamic range @ 1kHz, A-Weighting | 125dB |
| Frequency response | 20Hz-20kHz (±0.2dB) |
| Output level | 4.2Vrms @ 0dBFS |
| Noise | < 2.4µVrms |
| Crosstalk @ 1kHz | -141dB |
| Channel balance | 0.3dB |
| Output impedance | 88Ω |
| Supply voltage | 5VDC 0.5A via USB |
| Dimensions | 103 x 146 x 37mm |
| Weight | 340g |
| Color | Black |
| TCT1 SPECIFICATIONS | |
|---|---|
| Product type | Jack 6.35mm cables |
| Connectors | Male Jack 6.35mm TRS |
| Length | 25cm |
| Cable external diameter | Ø8mm |
| Conductors material | Copper Silver plated Copper |
| Conductors section | 0.533mm² (19AWG) |
| Connectors contacts plating | Gold |
| External sheath | Braided nylon |
| Color | Black and red |
| Quantity | Sold in pairs (1 cable with red markings, 1 cable with white markings) |
