PACK TOPPING E50 BALANCED DAC + L50 BALANCED HEADPHONE AMPLIFIER + TCT1 JACK 6.35MM CABLES BLACK
AUD1471_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci

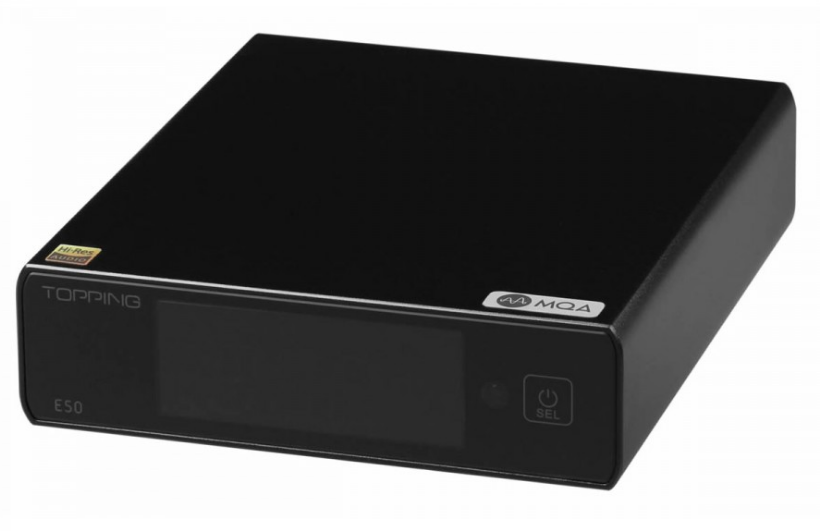

This Topping pack is composed of a balanced DAC E50, a balanced headphone amplifier L50 and cables Jack 6.35mm TCT1 allowing the connection of both devices.
Dodatne specifikacije za PACK TOPPING E50 BALANCED DAC + L50 BALANCED HEADPHONE AMPLIFIER + TCT1 JACK 6.35MM CABLES BLACK
| SPECIFICATIONS | ||
|---|---|---|
| Product type | Pack DAC + Headphone amplifier + Jack 6.35mm TRS cables | |
| Pack content | 1x Topping E50 1x Topping L50 1x Topping TCT1 |
|
| TOPPING E50 SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| DAC Chip | ESS ES9068AS |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA Optical, Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64, MQA |
| Inputs | 1x USB-B 1x Optical Toslink 1x Coaxial |
| Outputs | 1x Single-ended stereo RCA 1x Balanced Jack 6.35mm TRS |
| THD+N @ A-Weighting | Single-ended : < 0.0001% @ 1kHz Balanced : < 0.00009% @ 1kHz |
| THD @ No-Weighting 90kBw | Single-ended : < 0.0003% @ 20Hz-20kHz Balanced : < 0.0003% @ 20Hz-20kHz |
| SNR @ A-Weighting | Single-ended : 124dB @ 1kHz Balanced : 126dB @ 1kHz |
| Dynamic range @ A-Weighting | Single-ended : 124dB @ 1kHz Balanced : 126dB @ 1kHz |
| Frequency response | Single-ended : 20Hz-40kHz (±0.3dB) Balanced : 20Hz-40kHz (±0.3dB) |
| Output level | Single-ended : 2Vrms @ 0dBFS Balanced : 4Vrms @ 0dBFS |
| Noise @ A-Weighting | Single-ended : < 1.3µVrms Balanced : < 2.3µVrms |
| Crosstalk | Single-ended : -130dB @ 1kHz Balanced : -139dB @ 1kHz |
| Output impedance | Single-ended : 20Ω Balanced : 100Ω |
| Supply voltage | 5VDC |
| Dimensions | 129 x 155 x 41mm |
| Color | Black |
| Package | 1x Topping E50 1x Remote control 1x USB-A to Jack DC power cable 1x USB-A to USB-B cabme |
| TOPPING L50 SPECIFICATIONS | |||
|---|---|---|---|
| Product type | Headphone amplifier | ||
| Inputs | 1x Balanced stereo Jack 6.35mm TRS 1x Single-ended stereo RCA |
||
| Outputs | 1x Balanced XLR 4 poles headphone output 1x Single-ended Jack 6.35mm headphone output 1x Balanced stereo Jack 6.35mm TRS 1x Single-ended stereo RCA |
||
| Single-ended | Balanced | ||
| THD+N @ 1kHz, A-Weighting | < 0.00006% @ 780mW, 32Ω | < 0.00006% @ 780mW, 32Ω | |
| < 0.00006% @ 333mW, 300Ω | < 0.00006% @ 333mW, 300Ω | ||
| THD @ 20Hz-20kHz, 90kBW | < 0.00008% @ 780mW, 32Ω | < 0.0001% @ 780mW, 32Ω | |
| < 0.00008% @ 76mW, 300Ω | < 0.0001% @ 76mW, 300Ω | ||
| SNR @ Max Out, 1kHz, A-Weighting | 145dB | 140dB | |
| SNR @ 50mV, 1kHz | 104dB | 104dB | |
| Dynamic range @ 1kHz, A-Weighting | 145dB | 140dB | |
| Frequency response | 20Hz - 40kHz (±0.05dB) | 20Hz - 40kHz (±0.1dB) | |
| Output level | 35Vpp @ G=L | 6.6Vpp @ G=L | |
| 35Vpp @ G=M | 35Vpp @ G=M | ||
| 37Vpp @ G=H | 37Vpp @ G=H | ||
| Measured noise level @ A-Weighting | < 0.7µVrms @ G=L | < 0.7µVrms @ G=L | |
| < 0.7µVrms @ G=M | < 0.7µVrms @ G=M | ||
| < 1.2µVrms @ G=H | < 1.2µVrms @ G=H | ||
| Crosstalk @ 1kHz | -119dB | -113dB | |
| Input sensitivity | 60Vrms @ G=L | 12.7Vrms @ G=L | |
| 12Vrms @ G=M | 12Vrms @ G=M | ||
| 2.7Vrms @ G=H | 2.7Vrms @ G=H | ||
| Gain | -14.3dB @ G=L | -14.5dB @ G=L | |
| -0.1dB @ G=M | -0.3dB @ G=M | ||
| 13.9dB @ G=H | 13.7dB @ G=H | ||
| Output impedance | < 0.1Ω | < 0.1ΩOutput power | |
| 2x 3500mW @ 16Ω, THD+N < 0.1% | |||
| 2x 2800mW @ 32Ω, THD+N < 0.1% | |||
| 2x 2000mW @ 64Ω, THD+N < 0.1% | |||
| 2x 540mW @ 300Ω, THD+N < 0.1% | |||
| 2x 290mW @ 600Ω, THD+N < 0.1% | |||
| Adapter impedance | > 8Ω | ||
| Supply voltage | 15V AC via Jack DC (power supply included) | ||
| Dimensions | 129 x 166 x 41mm | ||
| Color | Black | ||
| Package | 1x Topping L50 1x Jack 6.35mm to Jack 3.5mm adapter 1x Power supply 15V AC |
||
| TCT1 SPECIFICATIONS | |
|---|---|
| Product type | XLR Cables |
| Connectors | Male Jack 6.35mm TRS |
| Length | 25cm |
| Cable external diameter | Ø8mm |
| Conductors material | Copper Silver plated Copper |
| Conductors section | 0.533mm² (19AWG) |
| Connectors contacts plating | Gold |
| External sheath | Braided nylon |
| Color | Black and red |
| Quantity | Sold in pairs (1 cable with red markings, 1 cable with white markings) |
