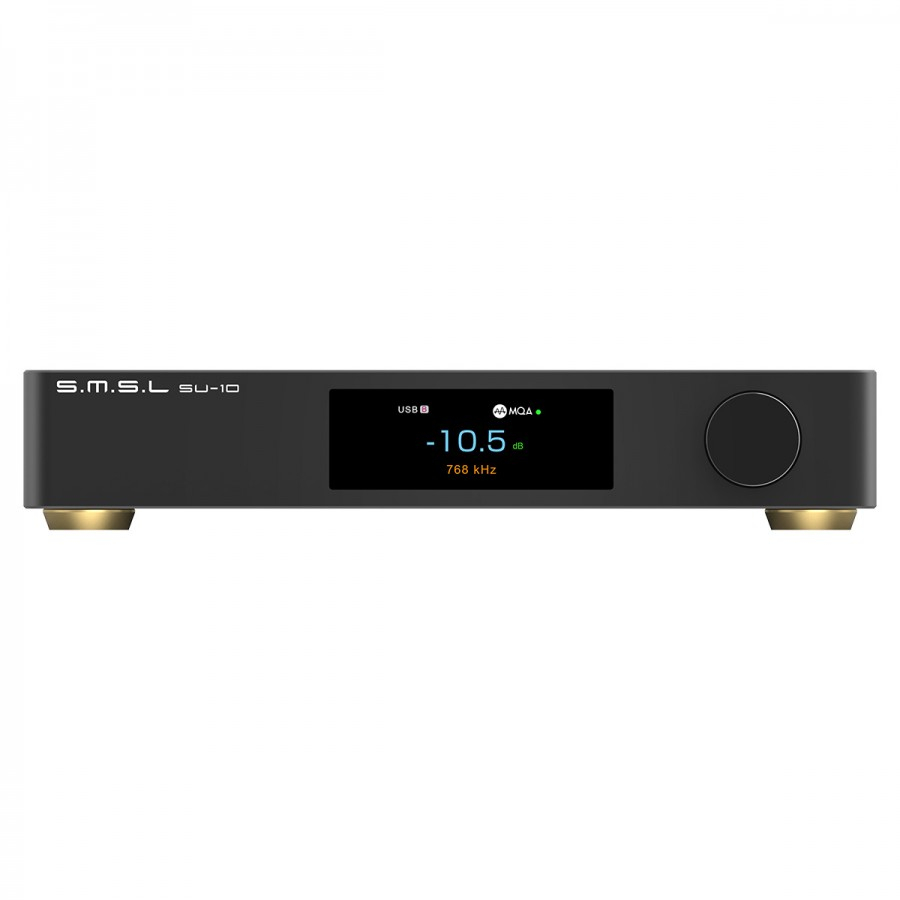

SMSL SU-10 BALANCED DAC 2X ES9038PRO XMOS XU316 BLUETOOTH 5.0 APTX HD LDAC 32BIT 768KHZ DSD512 MQA MQA-CD
The SMSL SU-10 is a high-end balanced DAC, benefiting from a rigorous design allowing it to provide a precise sound reproduction, as close as possible to the original signal. It is equipped with two ESS ES9038Pro digital to analog conversion chips, ensuring a particularly efficient decoding, with a very low level of distortion and noise. In combination with a state-of-the-art XMOS XU316 USB interface, the SU-10 is capable of playing high-resolution audio streams up to PCM 32bit 768kHz and DSD512, but also decoding MQA files.
Dodatne specifikacije za SMSL SU-10 BALANCED DAC 2X ES9038PRO XMOS XU316 BLUETOOTH 5.0 APTX HD LDAC 32BIT 768KHZ DSD512 MQA MQA-CD
The SMSL SU-10 is a high-end balanced DAC, benefiting from a rigorous design allowing it to provide a precise sound reproduction, as close as possible to the original signal. It is equipped with two ESS ES9038Pro digital to analog conversion chips, ensuring a particularly efficient decoding, with a very low level of distortion and noise. In combination with a state-of-the-art XMOS XU316 USB interface, the SU-10 is capable of playing high-resolution audio streams up to PCM 32bit 768kHz and DSD512, but also decoding MQA files. The converter stage also works in conjunction with a high performance CK-03 clock circuit, which reconstructs an accurate clock signal to minimize the jitter level.
The whole benefits from a careful manufacture. For example, there are no less than 21 OPA1612A OPAs in the conversion stage. The dual linear low noise power supply allows to provide an independent electrical signal to the analog circuit and to the digital section. Several voltage regulators ensure a high stability and reliability of this signal.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| Inputs | Bluetooth 5.0 1x USB-B 1x USB-C 1x Optical Toslink 1x Coaxial 1x I2S via HDMI 1x AES |
| Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
| Line output amplitude | XLR : 5.1Vrms RCA : 2.6Vrms |
| THD+N | 0.00005% (-125dB) |
| Dynamic range | XLR : 135dB RCA : 128dB |
| SNR | XLR : 135dB RCA : 128dB |
| USB transmission mode | Asynchronous |
| USB compatibility | Windows 7 / 8 / 8.1 / 10 / 11 Mac OSX 10.6 or later Linux |
| MQA decoder | Via USB / Optical / Coaxial / I2S / AES |
| MQA-CD decoder | Via Optical / Coaxial / AES |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, native DSD up to DSD512, DSD DoP up to DSD256 Optical / Coaxial / AES : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX HD, LDAC |
| GENERAL | |
|---|---|
| Consumption | < 30W |
| Standby consumption | < 0.5W |
| Dimensions | 240*185*39mm |
| Weight | 1.86kg |
| Color | Black |
Specifikacija za SMSL SU-10 BALANCED DAC 2X ES9038PRO XMOS XU316 BLUETOOTH 5.0 APTX HD LDAC 32BIT 768KHZ DSD512 MQA MQA-CD
OPĆENITO |
|---|
