SMSL M500 MKIII DAC HEADPHONE AMPLIFIER ES9038PRO XMOS XU316 BLUETOOTH 5.0 32BIT 768KHZ DSD512 MQA
AUD1462_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The M500 MKIII from SMSL is an improved version of the very good DAC and headphone amplifier M500 MKII, offering superior performances for a sound restitution still of a great precision and richness, in particular thanks to an update of some components.
Dodatne specifikacije za SMSL M500 MKIII DAC HEADPHONE AMPLIFIER ES9038PRO XMOS XU316 BLUETOOTH 5.0 32BIT 768KHZ DSD512 MQA
The M500 MKIII from SMSL is an improved version of the very good DAC and headphone amplifier M500 MKII, offering superior performances for a sound restitution still of a great precision and richness, in particular thanks to an update of some components.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC and headphone amplifier |
| Inputs | Bluetooth 1x USB-B 1x Optical Toslink 1x Coaxial |

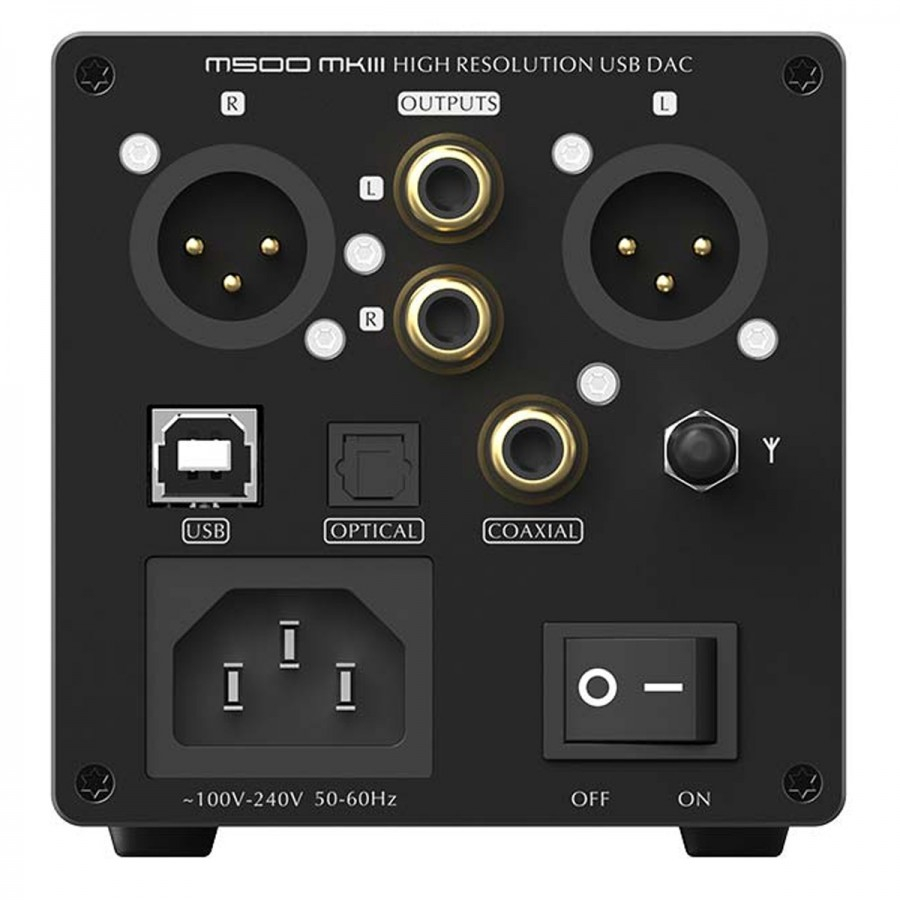

| Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR 1x Jack 6.35mm headphone output 1x Jack 4.4mm headphone output |
| DAC Chip | ESS ES9038Pro |
| USB interface | XMOS XU316 |
| THD+N | 0.00006% (-123.5dB) (UN-WTD) |
| Headphone amplifier THD+N | 0.0001% (-120dB) (UN-WTD) |
| Headphone amplifier output power | 2x2W @ 16Ω 2x1W @ 32Ω |
| Headphone amplifier gain | Low: 0dB High: +9dB |
| Dynamic range | XLR : 133dB RCA : 126dB |
| SNR | XLR : 133dB RCA : 126dB |
| USB compatibility | Windows 7 / 8 / 8.1 / 10 Mac OSX10.6 or later Linux |
| MQA decoding | USB / Optical / Coaxial |
| MQA-CD decoding | Optical / Coaxial |
| DoP Decoding | USB / Optical / Coaxial |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX HD, LDAC |
| GENERAL | |
|---|---|
| Supply voltage | 100-240VAC 50/60Hz |
| Consumption | 5W |
| Standby consumption | < 0.5W |
| Dimensions | 85 x 88 x 197mm |
| Weight | 0.9kg |
| Color | Black |
| Package | 1x SMSL M500 MKIII 1x Remote control 1x Power cable 1x USB Cable |
Specifikacija za SMSL M500 MKIII DAC HEADPHONE AMPLIFIER ES9038PRO XMOS XU316 BLUETOOTH 5.0 32BIT 768KHZ DSD512 MQA
OPĆENITO |
|---|
