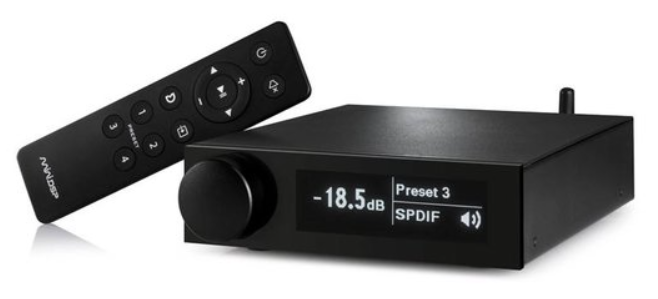

MINIDSP FLEX AUDIO PROCESSOR DSP BALANCED SHARC ADSP21489 XMOS BLUETOOTH
AUD1389_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The miniDSP Flex is the brand's 3rd generation 2-in/4-out audio processor. It keeps the powerful floating point processor used previously with a redesigned input/output architecture to offer versatile connectivity.
Dodatne specifikacije za MINIDSP FLEX AUDIO PROCESSOR DSP BALANCED SHARC ADSP21489 XMOS BLUETOOTH
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DSP |
| CPU | Analog Devices floating point DSP SHARC ADSP21489 400MHZ |
| USB Interface | XMOS |
| Inputs | Bluetooth 1x USB-B 1x Coaxial 1x Optical Toslink 1x Balanced Jack 6.35mm TRS |
| Outputs | 2x Balanced Jack 6.35mm TRS |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX HD, LDAC |
| Recording feature via USB | 4 channel output processing |
| Processing sampling rate | 32bit 96kHz (32bit 48kHz with Dirac Live® license) |
| Analog input impedance | 200kΩ |
| Analog output impedance | 200Ω |
| Max input/output levels | 4Vrms / 4Vrms |
| Frequency response | 20Hz-20kHz ±0.1dB |
| SNR (digital to analog) | 121dB(A) |
| THD+N (digital to analog) | -112dB (0.00025%) ±3dB |
| Crosstalk (digital to analog) | -128dB |
| SNR (analog to analog) | 116dB(A) |
| THD+N (analog to analog) | -108dB (0.0004%) +/-3dB |
| Crosstalk (analog to analog) | -123dB |
| Filterinf technology | FIR + IIR Dirac Live® optional: 3x full range correction (20~20kHz) |
| DSP presets | up to 4 profiles |
| GENERAL | |
|---|---|
| Supply voltage | 12VDC 1.6A (power adapter included) |
| Consumption | 10.3W |
| Standby consumption | 3.1W |
| Dimensions | 150 x 180 x 41mm |
| Color | Black |
| Package | 1x miniDSP Flex Balanced 1x Remote control 1x Power adapter |
