SMSL C200 DAC ES9038Q2M BLUETOOTH 5.0 APTX-HD LDAC 32BIT 768KHZ DSD512
AUD1382_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci

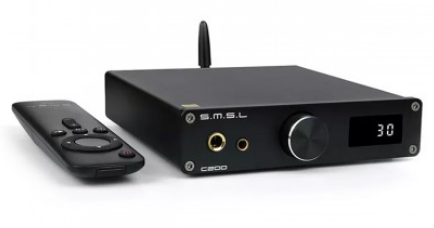

SMSL offers with the C200 a DAC as compact as performing, benefiting from a careful design and a connectic able to answer to the majority of integration needs.
Dodatne specifikacije za SMSL C200 DAC ES9038Q2M BLUETOOTH 5.0 APTX-HD LDAC 32BIT 768KHZ DSD512
Technical characterisitcs
| SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| DAC chip | ESS ES9038Q2M |
| Inputs | Bluetooth 5.0 1x USB-C 1x Optical Toslink 1x Coaxial |
| Outputs | 1x Single-ended stereo RCA output 1x Balanced stereo Jack 6.35mm TRS output 1x Single-ended Jack 6.35mm headphone output 1x Balanced Jack 4.4mm headphone output |
| Output level | TRS : 4.0Vrms RCA : 2.0Vrms |
| Headphone output power | 2x 2.6W @ 16Ω 2x 1.3W @ 32Ω |
| Headphone output gain | Low gain : 0dB High gain : 11dB |
| THD+N | Line out : 0.0001% (-120dB) Headphone output : 0.00013% (-117dB) |
| Dynamic range | TRS : 126dB RCA : 125dB Headphone output : 123dB |
| SNR | TRS : 126dB RCA : 124dB Headphone output : 123dB |
| Output impedance | Line out : 100Ω Headphone output : Near 0Ω |
| Supported sampling rates | USB : PCM up to 32bit 768khz, DSD up to DSD512 Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX HD, LDAC |
| GENERAL | |
|---|---|
| Consumption | 5W |
| Standby consumption | < 0.5W |
| Dimensions | 139 x 147.5 x 32mm |
| Weight | 510g |
| Color | Black |
| Package | 1x SMSL C200 1x Remote control 1x Bluetooth antenna 1x USB cable 1x Power cable |
