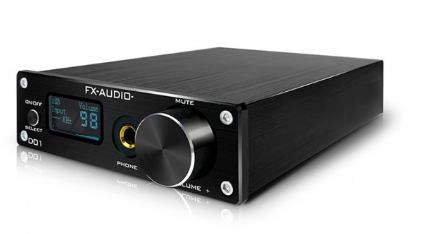

FX-AUDIO DAC - D01 DAC HEADPHONE AMPLIFIER POJAČALO ZA SLUŠALICE
AUD1306_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Featuring an excellent 32-bit ES9038Q2M digital-to-analog conversion chip, the DAC FX-Audio D01 offers excellent audio performance with a wide dynamic range, low distortion, and jitter reduction.
Dodatne specifikacije za FX-AUDIO DAC - D01 DAC HEADPHONE AMPLIFIER POJAČALO ZA SLUŠALICE
| SPECIFICATIONS | |
|---|---|
| Product type | DAC Headphone amplifier |
| Inputs | Bluetooth 5.0 1x USB-B 1x Optical 1x Coaxial |
| Outputs | 1x Jack 6.35mm Headphone output 1x Stereo RCA line output |
| Microcontroller | STM32 |
| DAC Chip | ES9038Q2M |
| USB Interface | XMOS XU208 |
| Amplification chiip | TPA6120ADWPR |
| AOP | LME49720NA |
| Bluetooth chip | CSR8675 |
| Line output level | 2Vrms @ 0dBFS |
| Distortion | < 0.002% @ 1kHz |
| SNR | 115dB @ 1kHz |
| Dynamic range | 115dB @ 1kHz |
| Sampling rates | USB : PCM up to 32bit 768kHz, DSD up to DSD512 Coaxial / optical : PCM up to 24bit 192kHz Bluetooth : PCM up to 24bit 96kHz |
| Power output | 2x 400mW @ 32Ω, THD+N < 1% 2x 90mW @ 300Ω, THD+N < 1% |
| Headphone amp distortion | < 0.004% @ 1kHz |
| Headphone amp SNR | > 110dB @ 1kHz |
| Frequency response | 20Hz - 20kHz @ +0, -0.5dB |
| Amp impedance | 16-300Ω |
| GENERAL | |
|---|---|
| Power supply | 12VDC 1A (included) |
| Body material | Aluminum |
| Color | Black |
| Dimensions | 114 x 178 x 33mm |
| Weight | 470g |
| Package | 1x x D01 1x Power Adapter 1x USB-A to USB-B cable 1x Bluetooth antenna |
Specifikacija za FX-AUDIO DAC - D01 DAC HEADPHONE AMPLIFIER POJAČALO ZA SLUŠALICE
OPĆENITO |
|---|
