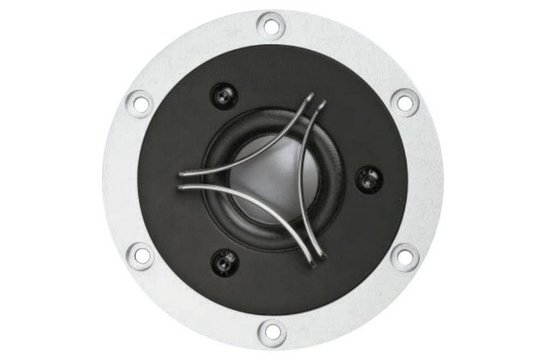

SB ACOUSTICS TW29BN-8 SATORI BERYLLIUM DOME TWEETER 80W 8 OHM 93.5DB
AUD1299_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Beryllium dome for non-resonant high frequency extension.Two part aluminium faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics.
Dodatne specifikacije za SB ACOUSTICS TW29BN-8 SATORI BERYLLIUM DOME TWEETER 80W 8 OHM 93.5DB
| SPECIFICATIONS | ||
|---|---|---|
| Type | Metal Dome Tweeter | |
| Dome Diameter | 2.5mm | |
| Impedance | 4 ohms | |
| Power (RMS) | 40 Watts | |
| Frequency response | 3,000 to 20,000 Hz | |
| Sensitivity | 94 dB 2.83V / 1m | |
| Resonant Frequency | 1612 Hz | Fs |
| DC resistance | 3.23 ohms | Re |
| Inductance | 0.03 mH | Le |
| Mechanical Q | 5.23 | Qms |
| Electromagnetic Q | 2.45 | Qes |
| Total Q | 1.71 | Qts |
| Product overall diamter | 6.30mm | |
| Cutout Diameter | 4.00mm | |
| Depth | 1.90mm |
|
Specifikacija za SB ACOUSTICS TW29BN-8 SATORI BERYLLIUM DOME TWEETER 80W 8 OHM 93.5DB
OPĆENITO |
|---|
