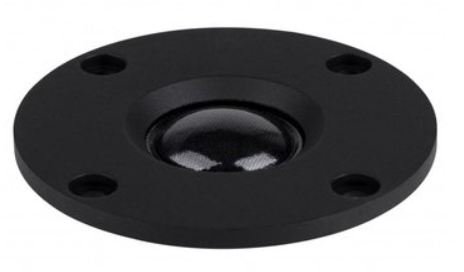

DAYTON AUDIO TD20F-4 3/4" SOFT DOME NEODYMIUM TWEETER 4 OHM
AUD1290_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
The Dayton Audio TD20F-4 uses a 3/4" silk dome to produce smooth response with excellent dispersion. At only 2-1/2" diameter and just over 1/2" deep, this tweeter is ideal for use in any compact design.
Dodatne specifikacije za DAYTON AUDIO TD20F-4 3/4" SOFT DOME NEODYMIUM TWEETER 4 OHM
Specifications
Article numberTD20F-4
Tweeter TypeSoft Dome
Cone / Dome Diameter19 mm | 3/4"
Power Handling (RMS)20 Watts
Impedance (Z)4 Ω
Sensitivity90 dB 2.83V/1m
Frequency Response3,000 to 20,000 Hz
Resonant Frequency (Fs)1,696 Hz
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.03 mH
Overall Outside Diameter2.56"
Cutout Diameter1.50"
Depth0.59"
Specifikacija za DAYTON AUDIO TD20F-4 3/4" SOFT DOME NEODYMIUM TWEETER 4 OHM
