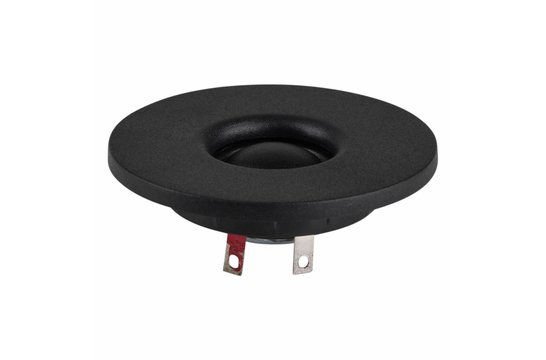

DAYTON AUDIO ND13FA-4 1/2" SOFT DOME NEODYMIUM TWEETER 4 OHM
AUD1287_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems.
Dodatne specifikacije za DAYTON AUDIO ND13FA-4 1/2" SOFT DOME NEODYMIUM TWEETER 4 OHM
Specifications
Article numberND13FA-4
Tweeter TypeSoft Dome
Tweeter SeriesND Series
Cone / Dome Diameter13 mm | 1/2"
Power Handling (RMS)20 Watts
Impedance (Z)4 Ω
Sensitivity88.5 dB 2.83V/1m
Frequency Response4,500 to 20,000 Hz
Resonant Frequency (Fs)2832 Hz
DC Resistance (Re)3.07 ohms
Voice Coil Inductance (Le)0.02 mH
Mechanical Q (Qms)0.93
Electromagnetic Q (Qes)8.44
Total Q (Qts)0.84
Overall Outside Diameter1.77"
Cutout Diameter1.16"
Depth0.45"
Specifikacija za DAYTON AUDIO ND13FA-4 1/2" SOFT DOME NEODYMIUM TWEETER 4 OHM
