Do isteka zaliha

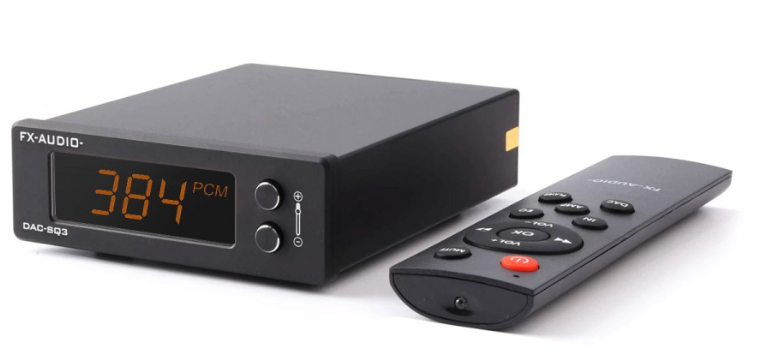

FX-AUDIO DAC-SQ3 USB DAC ES9038Q2M XMOS U208 32BIT 384KHZ DSD256 BLACK
AUD1272_3,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
With its DAC-SQ3, FX-Audio offers a small, compact, affordable and powerful DAC. Featuring an ESS ES9038Q2M digital-to-analog conversion chip.
Dodatne specifikacije za FX-AUDIO DAC-SQ3 USB DAC ES9038Q2M XMOS U208 32BIT 384KHZ DSD256 BLACK
| SPECIFICATIONS | |
|---|---|
| Product type | DAC Headphone amplifier |
| DAC chip | ES9023 |
| SPDIF interface | CS8416 |
| Inputs | 1x USB-B 1x Coaxial 1x Optical |
| Outputs | 1x Stereo RCA 1x Jack 3.5mm headphone output |
| Supported sampling rates | USB : PCM up to 24bit 96kHz Optical / Coaxial : PCM up to 24bit 192kHz |
| RCA output level | 2Vrms |
| RCA impedance | ≥ 100Ω |
| Headphone output power | 45mW @ 16Ω 85mW @ 32Ω 160mW @ 64Ω 150mW @ 120Ω 65mW @ 300Ω |
| USB transmission mode | ASRC |
| THD+N | 0.04% |
| SNR | 105dB |
| Dynamic range | 105dB |
| Frequency response | 20Hz - 20kHz |
| Headphone output background noise | -110dBm |
| Headphone output amplitude level | 4Vrms |
| Recommended headphone impedance | 16Ω - 300Ω |
| GENERAL | |
|---|---|
| Housing material | Aluminum |
| Dimensions | 99.2 x 98 x 33mm |
| Weight | 560g |
| Color | Black |
| Package | 1x FX-Audio DACX3PRO 1x Power supply 1x USB cable |
Specifikacija za FX-AUDIO DAC-SQ3 USB DAC ES9038Q2M XMOS U208 32BIT 384KHZ DSD256 BLACK
OPĆENITO |
|---|
