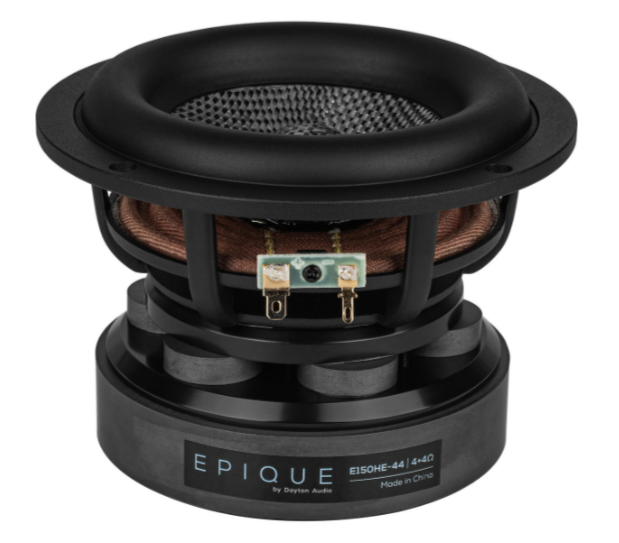

DAYTON AUDIO EPIQUE E150HE-44 5-1/2" SUBWOOFER
AUD1194_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Dayton Audio's ground breaking Epique E150HE-44 5-1/2" carbon fiber cone dual voice coil woofer is engineered to produce premium performance with controlled response.
Dodatne specifikacije za DAYTON AUDIO EPIQUE E150HE-44 5-1/2" SUBWOOFER
Specifications
Article numberE150HE-44
Woofer SeriesEPIQUE by Dayton Audio
Woofer TypeExtended Range Subwoofer
Nominal Diameter5-1/2"
Power Handling (RMS)200 Watts
Power Handling (max)400 Watts
Impedance (Z)8 Ohms
Sensitivity83.3dB 2.83V/1m
Frequency Response30 to 4,000Hz
Voice Coil Diameter1.5"
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)1.6mH
Resonant Frequency (Fs)40Hz
Mechanical Q (Qms)2.94
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.39
Diaphragm Mass Inc. Airload (Mms)26.6g
Mechanical Compliance of Suspension (Cms)0.6mm/N
Surface Area of Cone (Sd)95cm²
BL Product (BL)9.8T·m
Compliance Equivalent Volume (Vas)0.27ft³
Maximum Linear Excursion (Xmax)14.7mm
Cone / Diaphragm MaterialCarbon Fiber
Surround MaterialSantoprene®
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter6"
Overall Depth4.125"
Baffle Cutout Diameter5"
# Mounting Holes4
Mounting Hole Diameter5.5
