MOGAMI NEGLEX W2549 KABEL 0.33mm2 O6mm - cijena za 1m
AUD1154_5,0(0),6,31
Dostupnost: Na skladištu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 12 mjeseci NEUTRINO

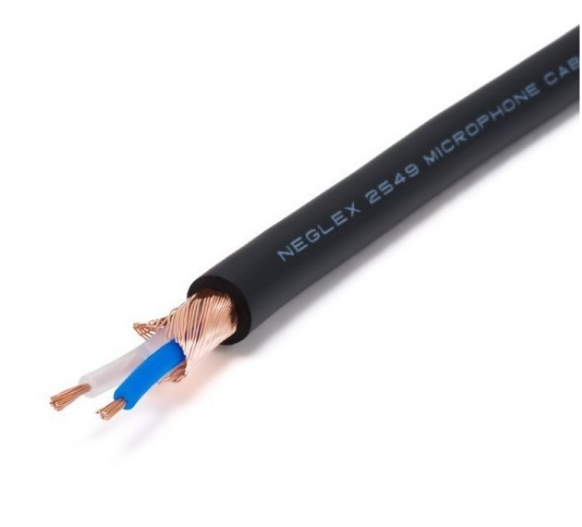

MOGAMI NEGLEX W2549 Balanced interconnect cable 0.33mm² Ø6mm
Dodatne specifikacije za MOGAMI NEGLEX W2549 KABEL 0.33mm2 O6mm - cijena za 1m
Characteristics :
- Up to 1.5 mm²: Rated voltage U0 / U: 300/500 V
- Starting at 2.5 mm²: Rated voltage U0 / U: 450/750 V
- Conductor cross-section up to 185 mm²
- External Diameter: 5.4mm
- Copper number kg: 14.4
- Specific flow resistance insulation:> 20 GOhm x cm
- Design of the core: Fine strands according to VDE 0295, Class 5 / IEC 60228 class 5
- Minimum bending radius:
- Occasionally movable: 15 x outside diameter
- Fixed: 4 x outside diameter
- Nominal voltage:
- Up to 1.5 mm²: U₀ / U: 300/500 V
- Starting from 2.5 mm²: U₀ / U: 450/750 V
- From 2.5 mm² in fixed and protected installation: U₀ / U: 600 / 1000V
- Test voltage: 4000 V
- Protective conductor:
- G = with protective conductor ve / ja
- X = without protective conductor
- Temperature range:
- Occasionally mobile: -5 ° C to + 70 ° C
- Fixed installation: -40 ° C to + 80 ° C
