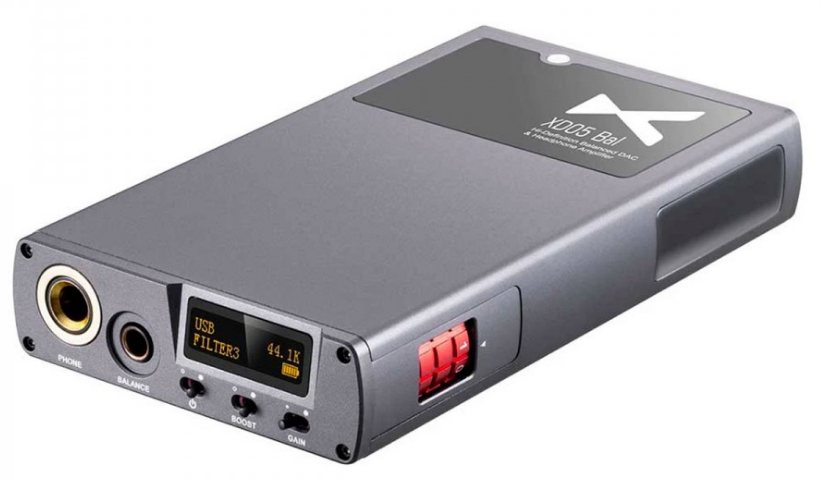

XDUOO XD05 BAL PORTABLE BALANCED HEADPHONE AMPLIFIER
AUD1132_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The xDuoo XD05 BAL is an enhanced version of the portable headphone amplifier XD05 PLUS.
Dodatne specifikacije za XDUOO XD05 BAL PORTABLE BALANCED HEADPHONE AMPLIFIER
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Balanced portable headphone amplifier / DAC |
| Inputs | 1x USB-C 1x Coaxial / Optical onJack 3.5mm 1x AES/EBU 1x AUX Jack 3.5mm |
| Outputs | 1x Single-ended Jack 6.35mm 1x Balanced Jack 4.4mm 1x AUX Jack 3.5mm |
| DAC Chips | 2x ESS ES9038Q2M |
| USB Interfaces | XMOS XU208 |
| Bluetooth chip | Qualcomm CSR8675 |
| Bluetooth version | 5.0 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX LL, aptX HD, LDAC |
| Battery | 3.8V 5000mAh |
| Gain setting | +6dB -15dB |
| Frequency response | USB / SPDIF : 20Hz - 20kHz AMP : 10Hz - 60kHz |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, DSD up to DSD512 AES/Optical/Coaxial : PCM up to 24bit 192kHz, DSD up to DSD64 |
| Output power | 1000mW @ 32Ω |
| THD+N | 0.0015% @ 1kHz, Jack 6.35mm 0.0008% @ 1kHz, Jack 4.4mm |
| SNR | 115dB @ Jack 6.35mm 117dB @ Jack 4.4mm |
| Crosstalk | ≥72dB @ Jack 6.35mm ≥100dB @ Jack 4.4mm |
| Output level (AUX) | 2Vrms |
| GENERAL | |
|---|---|
| Dimensions | 130 x 75 x 22mm |
| Weight | 290g |
