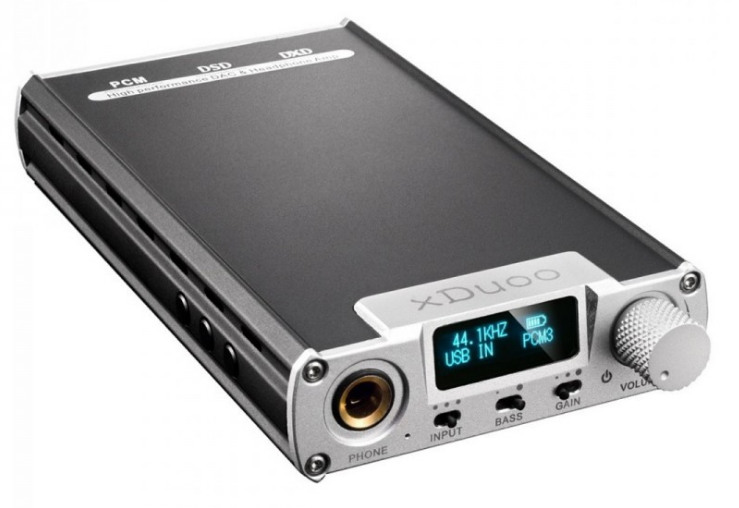

XDUOO XD-05 NOMAD BATTERY 32BIT DAC AK4490

Electrical characteristics:

• 3.7V / 4000mAh Internal Lithium Polymer Rechargeable Battery.
• Approximate charging time (manufacturer data) 5H battery with charger, 11H in slow mode with computer

Compatibility with USB digital input on XMOS chips:

• PCM: 16 to 32 Bit / 44.1Khz / 384KHz.
• DSD: DSD64-256 (1Bit / 2.8m11.2M).
• DXD: 24-32bit / 352.8-384Khz.

Compatibility by input Mini Toslink and coaxial (jack3.5mm) on chips CS8416:

• PCM: 16Bit / 44.1-192Khz.

Compatibility on OTG Android connector:

• From 16bit 44.1Khz up to 24Bit / 192Khz (OTG cable not included).

Compatibility for IOS Apple by camera connector (not supplied):

• PCM: Up to 24 Bit 192Khz.
• DSD: up to DSD128.

Because ITunes is not compatible with DSD files, IOS devices require a compatible player available on the App Store for DSD and High Definition files.

Supported operating systems:

• Windows 7 / Vista / WinXp / Win8, MAC OSX, iOS, Android.

Digital Inputs:

• A USB A to Male (compatible Camera kit Lightning and USB OTG Android ex product 10436).
• An optical SPDIF input Mini Toslink on 3.5mm jack.

Analog input and output:

• A switchable input also output line on jack 3.5mm.
• A headphone output on 6.35mm jack for headphones with impedance of 8 ~ 300Ohm.

Technical Specifications:

• Output power: 500mW on 32Ohm.
• Frequency response: 20h to 100Khz (+ -0.5dB).
• Signal to noise ratio 112dB.
• Display: OLED 0.91 inches.
• Dimensions: 139.5x75x23mm.
• Weight: 270g.
