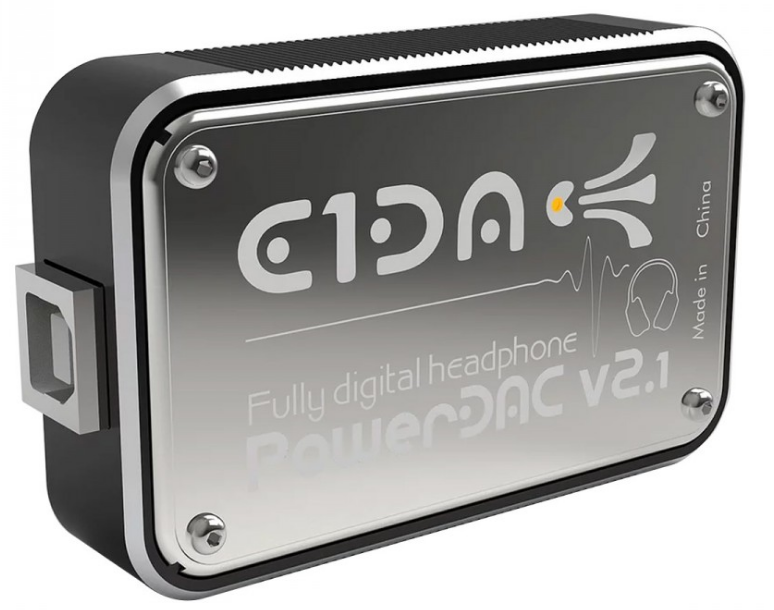

E1DA POWERDAC V2.1 HEADPHONE AMPLIFIER
AUD1126_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
E1DA's FDA PowerDAC V2.1 headphone amplifier builds on the excellent foundation of its predecessor, the PowerDAC V2, while now allowing operation with both balanced and single-ended headphones.
Dodatne specifikacije za E1DA POWERDAC V2.1 HEADPHONE AMPLIFIER
| SPECIFICATIONS | |
|---|---|
| Product type | Headphone amplifier |
| Amplifier type | FDA (Full Digital Amplifier) |
| Amplification chip | TAS5558 |
| Output power | > 320mW @ 32Ω load, 1kHz, THD=1% > 580mW @ 16Ω, 1kHz, THD=1% |
| Input | 1x USB |
| Output | 1x Jack 2.5mm balanced (pinout A&K) |
| Suported sampling rates | Input : 24bit 192kHz Output : PWM 384kHz + passive LC demodulation |
| Output impedance | 1.5Ω @ 1000Hz FFT flat-top -6dBFS 32Ω load/open load, -4dB drop |
| Frequency response | 20Hz - 20kHz (±0.2dB) 10Hz - 30kHz (±0.5dB) 2.5Hz - 46kHz (±3dB) |
| SNR | -108dB(A) |
| THD+N | < 0.05% @ 1kHz, 0dBFS |
| Crosstalk | < -92dB @ 1kHz |
| GENERAL | |
|---|---|
| Supply voltage | 5V 250mA via USB |
| Dimensions | 75 x 45.5 x 19mm |
| Weight | 68g |
Specifikacija za E1DA POWERDAC V2.1 HEADPHONE AMPLIFIER
