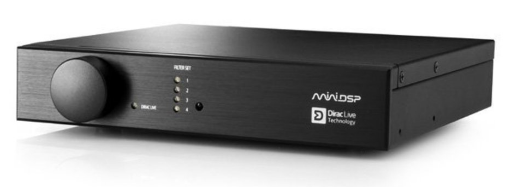

MINIDSP DDRC-88D DIGITAL MULTI-CHANNEL I/O DIRAC LIVE PROCESSOR
AUD1106_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
All Digital 8xIN, 8xOUT Dirac Live® correction DSP with AES-EBU or SPDIF in/out, Tascam DB25 to XLR AES-EBU pigtail or DB25 to SPDIF/COAX pigtail, perfect fit for Studio, Broadcasting, Hifi, Live Sound and Digital Cinema (DCi) applications.
Dodatne specifikacije za MINIDSP DDRC-88D DIGITAL MULTI-CHANNEL I/O DIRAC LIVE PROCESSOR
Specifications
Article numberDDRC-88D
Device typeBoxed
Device serieDirac Live Series
DSP chipAnalog Devices ADSP21369
Processing resolution & sample rate32 bit / 48 kHz
Input / ouput configuration8 / 8
Audio input connectivityAES/EBU (DB-25)
Audio output connectivityAES/EBU (DB-25)
Max input level-
Max output level-
Input impedance-
Output impedance-
Calibration softwareDirac Live® for miniDSP
IIRcheck
FIRcheck
Dirac Live®check
DSP presets4
Impulse response correctioncheck
Infrared remote learningcheck
Windows / Mac compatiblecheck/check
UMIK-1 includedNo
Room EQ wizard supportcheck
Dimensions215 x 206 x 42 mm
Power5 VDC
Specifikacija za MINIDSP DDRC-88D DIGITAL MULTI-CHANNEL I/O DIRAC LIVE PROCESSOR
