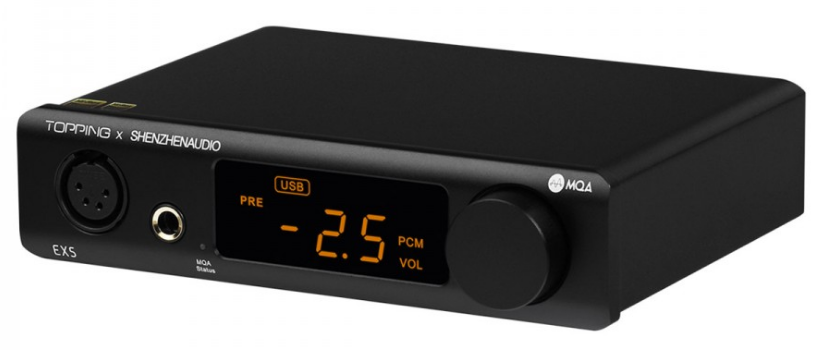

TOPPING EX5 HEADPHONE AMPLIFIER DAC 2X ES9038Q2M
AUD1102_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Topping offers with its EX5 an extremely powerful DAC and headphone amplifier combo.
Dodatne specifikacije za TOPPING EX5 HEADPHONE AMPLIFIER DAC 2X ES9038Q2M
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC Headphone amplifier |
| Inputs | 1x USB-B 1x Optical Toslink 1x Coaxial Bluetooth 5.0 |
| Outputs | 1x Single-ended RCA 1x Balanced XLR 1x Single-ended Jack 6.35mm headphone output 1x Balanced XLR 4 pins headphone output |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX LL, aptX HD, LDAC |
| DAC (@ LINE OUT/USB, 96KHZ) | |
|---|---|
| THD+N @ A-Weighting | RCA : < 0.0001% @ 1kHz XLR : < 0.0001% @ 1kHz |
| THD @ No-Weighting, 90kBw | RCA : < 0.0005% @ 20Hz-20kHz XLR : < 0.0004% @ 20Hz-20kHz |
| SNR @ A-Weighting | RCA : 125dB @ 1kHz XLR : 125dB @ 1kHz |
| Dynamic range @ A-Weighting | RCA : 125dB @ 1kHz XLR : 125dB @ 1kHz |
| Frequency response | RCA : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) XLR : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) |
| Output level | RCA : 2.1Vrms @ 0dBFS XLR : 4.3Vrms @ 0dBFS |
| Noise @ A-Weighting | RCA : < 1.7µVrms XLR : < 2.5µVrms |
| Crosstalk | RCA : -85dB @ 1kHz XLR : -85dB @ 1kHz |
| Channel balance | RCA : 0.3dB XLR : 0.3dB |
| Output impedance | RCA : 100Ω XLR : 200Ω |
| HEADPHONE AMPLIFIER (@ USB, 96KHZ) | |
|---|---|
| THD+N @ 1kHz A-Weighting | Jack 6.35mm : < 0.0001% @ 145mW 32Ω / < 0.0001% @ 15mW 300Ω XLR 4 Pins : < 0.0003% @ 145mW 32Ω / < 0.00015% @ 15mW 300Ω |
| THD @ 20Hz-20kHz 90kBW | Jack 6.35mm : < 0.00015% @ 145mW 32Ω / < 0.00015% @ 15mW 300Ω XLR 4 Pins : < 0.0004% @ 145mW 32Ω / < 0.0002% @ 15mW 300Ω |
| SNR @ Max out, 1kHz, A-Weighting | Jack 6.35mm : 125dB XLR 4 Pins : 125dB |
| Dynamic range @ 1kHz A-Weighting | Jack 6.35mm : 125dB XLR 4 Pins : 125dB |
| Frequency response | Jack 6.35mm : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) XLR 4 Pins : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) |
| Output level | Jack 6.35mm : 5.9Vpp @ G=L / 18.3Vpp @ G=H XLR 4 Pins : 5.9Vpp @ G=L / 18.3Vpp @ G=H |
| Noise@ A-Weighting | Jack 6.35mm : < 1.5µVrms @ G=L / < 3Vrms @ G=H XLR 4 Pins : < 1.5µVrms @ G=L / < 3Vrms @ G=H |
| Diaphonie @ 1kHz | Jack 6.35mm : -88dB XLR 4 Pins : -99dB |
| Gain | Jack 6.35mm : G=L 6dB (Vrms/FS) / G=H 16dB (Vrms/FS) XLR 4 Pins : G=L 6dB (Vrms/FS) / G=H 16dB (Vrms/FS) |
| Channel balance | Jack 6.35mm : 0.3dB XLR 4 Pins : 0.3dB |
| Output impedance | Jack 6.35mm : < 0.1Ω XLR 4 Pins : < 0.1Ω |
| Output power | Jack 6.35mm : 2x 1.3W @ 32Ω THD+N<1% / 2x 140mW @ 300Ω THD+N<1% XLR 4 Pins : 2x 1.3W @ 32Ω THD+N<1% / 2x 140mW @ 300Ω THD+N<1% |
| Headphone impedance recommended | Jack 6.35mm : 16-600Ω XLR 4 Pins : 16-600Ω |
| GENERAL | |
|---|---|
| Supply voltage | 100-240VAC 50Hz/60Hz (power cable included) |
| Dimensions | 17.4 x 13.8 x 4.5cm |
| Weight | 750g |
| Color | Black |
| Package | 1x Toppping EX5 1x Remote control 1x USB cable 1x Jack 6.35mm to Jack 3.5mm adapter 1x Bluetooth antenna 1x Power cable |
