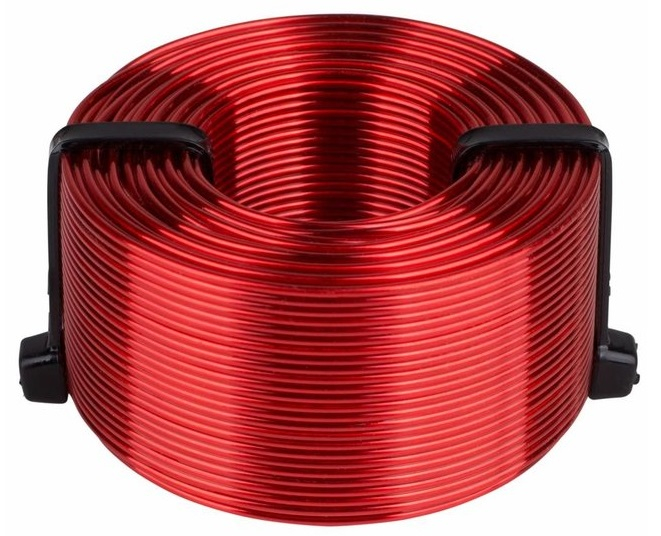

DAYTON AUDIO LW183 3.0 MH 1.0 Ω 3% 18 AWG PERFECT LAYER INDUCTOR CROSSOVER COIL
AUD1076_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Dayton Audio LW183 | 3.0 mH | 1.0 Ω | 3% | 18 AWG | Perfect Layer Inductor Crossover Coil
Dodatne specifikacije za DAYTON AUDIO LW183 3.0 MH 1.0 Ω 3% 18 AWG PERFECT LAYER INDUCTOR CROSSOVER COIL
Product description
Highlights
- Highly refined copper wire
- Baked enamel insulator
- Perfect layer windings
- Air core construction
- 300 watts RMS power handling
- ±3% tolerance
Product details
Dayton Audio LW183 | 3.0 mH | 1.0 Ω | 3% | 18 AWG | Perfect Layer Inductor Crossover Coil
Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction where large power handling is required. Features fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.
Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.
Specifications
Article numberLW183
Inductance3.0 mH
DCR1.0 ohms
Tolerance±3%
Wire diameter18 AWG
Power handling (RMS)300 Watts
Dimensions: Ø * H (mm)53 x 26 mm
Specifikacija za DAYTON AUDIO LW183 3.0 MH 1.0 Ω 3% 18 AWG PERFECT LAYER INDUCTOR CROSSOVER COIL
