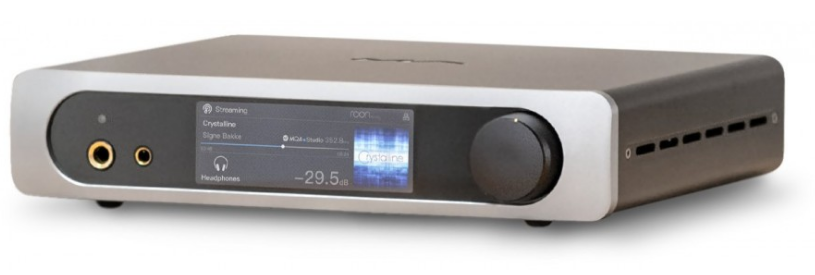

MATRIX MINI-I 3 PRO DAC STREAMER
AUD1058_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
MATRIX MINI-I 3 PRO MQA Balanced DAC ES9038Q2M Headphone Amplifier Streamer 768kHz DSD512
Dodatne specifikacije za MATRIX MINI-I 3 PRO DAC STREAMER
| DAC MEASUREMENTS (@ USB, 96KHZ) | ||
|---|---|---|
| THD+N @ 1kHz, A-Weighting | < 0.00015% | |
| THD @ 20Hz-20kHz, 90kBW | < 0.0002% | |
| SNR @ 1kHz, A-Weighting | 122dB | |
| Dynamic range @ 1kHz, A-Weighting | 122dB | |
| Frequency response | 20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB) |
|
| Output level | 2.1Vrms @ 0dBFS | |
| Noise @ A-Weighting | < 1.8µVrms | |
| Crosstalk @ 1kHz | -137dB | |
| Channel balance | 0.3dB | |
| Output impedance | 20Ω | |
| HEADPHONE AMPLIFIER MEASUREMENTS | ||
|---|---|---|
| THD+N @ 1kHz, A-Weighting | < 0.00015% @ Output=1500mW, 32Ω < 0.00013% @ Output=160mW, 300Ω |
|
| THD @ 20Hz-20kHz, 90kBW | < 0.0005% @ Output=1500mW, 32Ω < 0.0005% @ Output=160mW, 300Ω |
|
| SNR @ Max output level, A-Weighting | 120dB | |
| Dynamic range @ 1kHz, A-Weighting | 120dB | |
| Frequency response | 20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB) |
|
| Output level | 5.5Vpp @ G=L 21.5Vpp @ G=H |
|
| Noise @ A-Weighting | < 2.1µVrms @ G=L < 7µVrms @ G=H |
|
| Crosstalk @ 1kHz | -90dB | |
| Gain | 6dB (Vrms/FS) @ G=L 19dB (Vrms/FS) @ G=H |
|
| Output impedance | < 0.1Ω | |
| Output power | 2x 1800mW @ 32Ω, THD+N < 0.1% 2x 900mW @ 64Ω, THD+N < 0.1% 2x 250mW @ 300Ω, THD+N < 0.1% |
|
| Adapter impedance | > 8Ω | |
