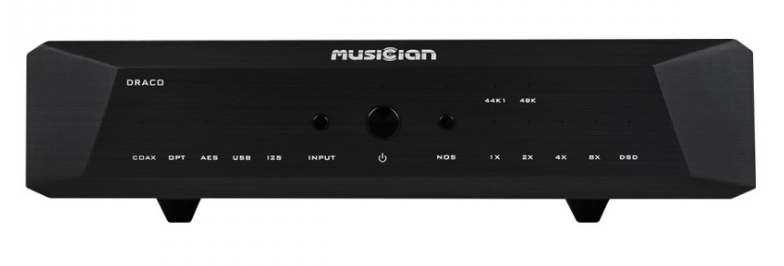

MUSICIAN DRACO NOS I2S R2R DAC BLACK
AUD1054_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The Musician Draco is a fully balanced, high end R2R DAC with high quality components.
Dodatne specifikacije za MUSICIAN DRACO NOS I2S R2R DAC BLACK
| SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| Inputs | 1x I2S LVDS via HDMI 1x Coaxial 1x Optical Toslink 1x AES 1x USB-B |
| Outputs | 1x Balanced XLR 1x Single-ended RCA |
| PCM Output voltage (@ 0dB, 1kHz) | XLR : 2.8Vrms RCA : 1.4Vrms |
| DSD Output voltage (@ 0dB, 1kHz) | XLR : 2Vrms RCA : 1Vrms |
| THD | XLR : 0.0016% RCA : 0.007% |
| SNR @ A-Weighting | XLR : 126dB RCA : 111dB |
| Frequency response @ +1/-3dB | XLR : 10Hz-85kHz RCA : 10Hz-85kHz |
| Resolution @ A-Weighting | XLR : 110dB RCA : 119dB |
| Phase | XLR : 0.016° RCA : 0.031° |
| Output noise | XLR : 1.3µVrms RCA : 4µVrms |
| Consumption @ 0dB, 1kHz, 230VAC | 5.6W |
Specifikacija za MUSICIAN DRACO NOS I2S R2R DAC BLACK
