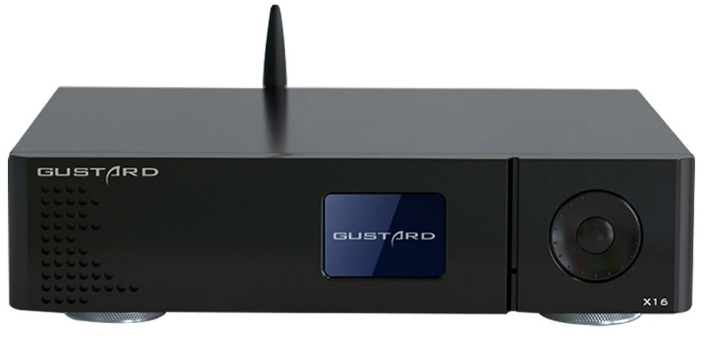

GUSTARD X16 ES9068AS AUDIO DAC
GUSTARD DAC-X16 MQA Two ES9068AS Balanced Full Decoding XU216 Processor OLED Screen High-Performance Audio Decoder
Dodatne specifikacije za GUSTARD X16 ES9068AS AUDIO DAC
Product specifications
Sample rate supported by digital input channels:
C0AX: PCM 16-24bit/44.1-192kHz; DSD DOP64
AES: PCM 16-24bit/44.1-192kHz; DSD DOP64
OPT: PCM 16-24bit/44.1-192kHz; DSD DOP64
USB: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256;
NATIVE DSD: DSD64-DSD512
IIS: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256;
NATIVE DSD: DSD64-DSD512
BT Bluetooth 5.0: PCM LDAC,AAC, SBC,APTX,APTX LL,APTX HD and other high frequency encoding,
LDAC can achieve 24B/96K high code transmission
* USB input supported operating system: WIN7 SP1/WIN8/WIN10 32-64bit; macOS; Linux
Analog output performance:
Amplitude frequency response: 20-20kHz/+-0.08dB
DNR: >126dB
Crosstalk: -130dB@1kHz
THD+N: <0.00010% 1kHz
IMD: <0.0004%@-1dBFs
RCA Output level: 2Vrms VOLUME 00dB)
Output impedance 100 ohms
XLR Output level: 4Vrms(VOLUME 00dB)
Output impedance 300 ohms
Other specifications:
AC Power supply: AC 115V/230V 50/ 60Hz
Power consumption:<15W
Dimensions:220mm*50mm**170mm
Weight: 2. 5Kg
