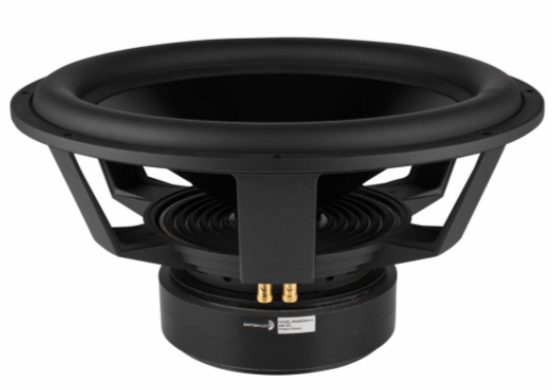

DAYTON RSS460HO-4 18" SUBWOOFER
AUD1014_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm.
Dodatne specifikacije za DAYTON RSS460HO-4 18" SUBWOOFER
Specifications
Article numberRSS460HO-4
Woofer SeriesReference Series
Woofer TypeSubwoofer
Nominal Diameter18"
Power Handling (RMS)900 watts
Power Handling (max)1800 watts
Impedance (Z)4 ohms
Sensitivity93 dB @ 2.83V/1m
Frequency Response20 - 500 Hz
Voice Coil Diameter76.2 mm
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)2.24 mH @ 1 kHz
Resonant Frequency (Fs)18.8 Hz
Mechanical Q (Qms)4.05
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.32
Diaphragm Mass Inc. Airload (Mms)499g
Mechanical Compliance of Suspension (Cms)0.14 mm/N
Surface Area of Cone (Sd)1,164.0 cm²
Volume of Displacement (Vd)1,484.1 cm³
BL Product (BL)23.4 Tm
Compliance Equivalent Volume (Vas)272 liters
Maximum Linear Excursion (Xmax)12.75 mm
Cone / Diaphragm MaterialBlack Anodized Aluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter461.5 mm
Overall Depth227 mm
Baffle Cutout Diameter424 mm
# Mounting Holes8
Sealed Volume3.04 ft.³
Sealed F340 Hz
Vented Volume7.5 ft.³
Vented F323 Hz
